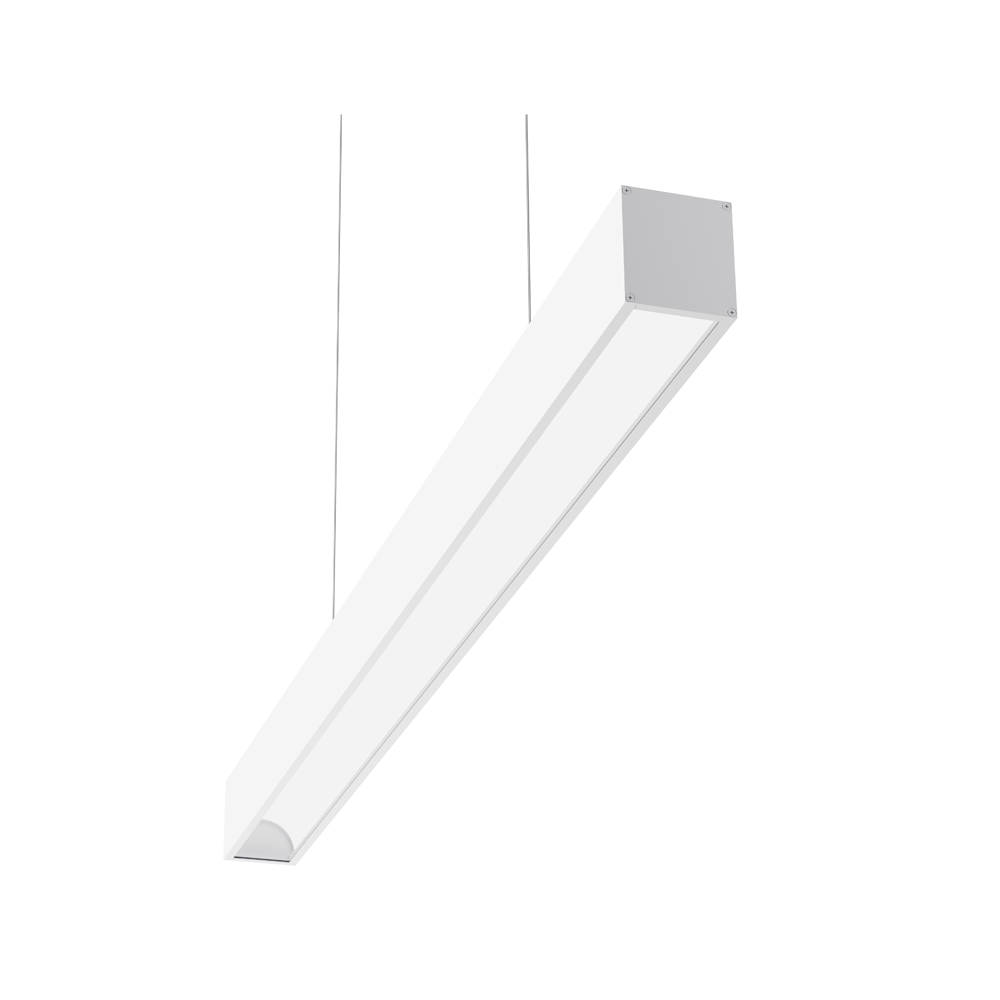

- Patented LED linear indirect design
- Advanced technology SMD 2835 LED
- High Light efficiency over 130lm/w
- RGB+CCT DALI control
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
1200x75mm, 1200x50mm, 1200x100mm, 1200x200mm |
| LED Chip : | San'an / Philips / Osram option |
|
Norminal Power : |
20-100W |
|
Luminous Flux (LM) : |
130lm/w |
|
CCT : |
3000K / 4000K / 6500K / RGB+CCT option |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram option |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<22 |
|
Materials : |
Aluminum, Metal |
| Finish : | White / Grey / Black |
|
IP Rating : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Suspending , Surface mounted |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ErP |
