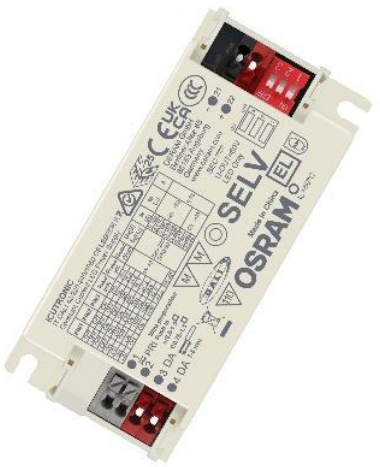

Constant Current DALI LED Driver
The reliable driver for energy saving lighting.
DALI-2 certifited; Embedded with Touch DIM functionality;
High flexibility thanks to wide operating range; Simple and
easy current setting via dipswitch interface.
Product Features
- Output currents: 700/750/800/850/900/950/1000/1050 mA
- Dipswitch interface
- Output voltage: 15 VDC – 42 VDC
- Touch DIM functionality
- Amplitude dimming 1...100%
- Low ripple < 5 %, Low THD < 10 %
- Typ. Efficiency: 89 %
- Suitable for class I and II luminaires
- Low stand-by consumption < 0.5 W
- 50’000 hours lifetime at tc max.
Dimension
Benefits
Wide operating range:
700/750/800/850/900/950/1000/1050 mA
Simple and easy current setting via dipswitch
High quality of light with low ripple current < 5%
Small size enables compact fixture design
Built in and independent mounting (with cable clamp)
With Touch DIM functionality
