- Front side , back side , complete panel reach IP68
- Anti-bacterial
- Special used in cleaning room , hospital
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details

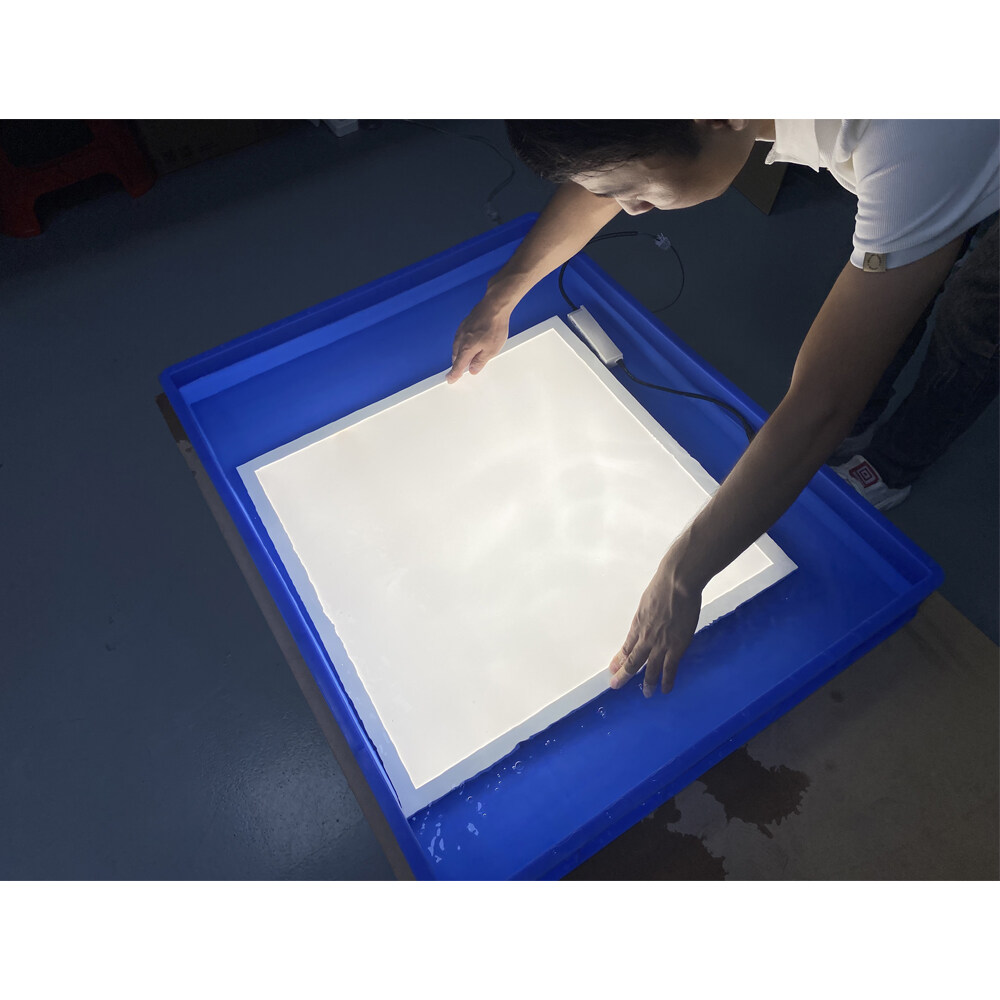

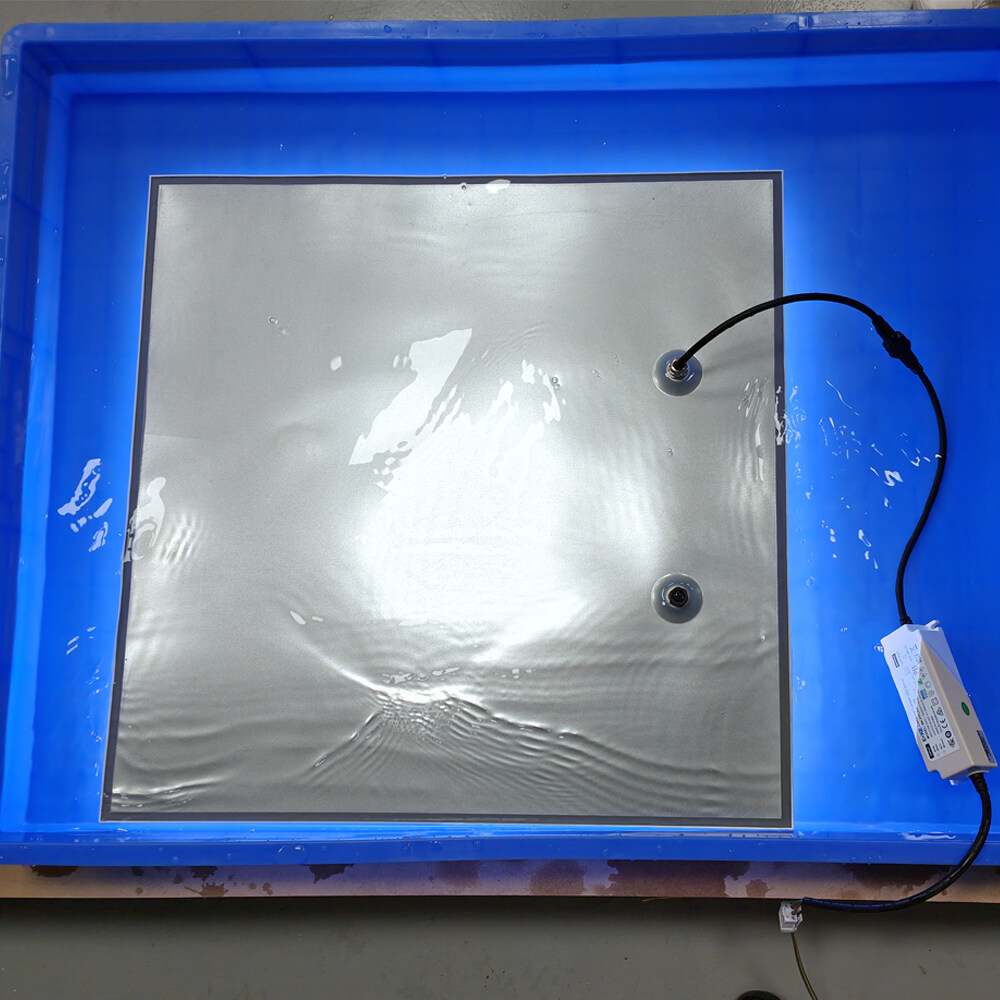

New technology IP68 LED panel , all sides filling superior glues , with breather valve on the backsize , can be IP68 dustproof and waterproof from front to the backsize of the complete panel . Advanced SMD LED technology edge lit , non-yellowing PMMA light guide plate . IP65 driver for option . Long lifespan over 50000H , 5 years warranty , greatly reducing the maintenance . It is perfect to install in the a high humidity space especially the indoor swimming pool , hospital , toilet , kitchen , bathroom , foyer , operating room, pharmaceutical factory , etc.
Sample is available to test , and fast delivery within 25 days for the bulk orders .
Specifications
|
Input Voltage : |
AC110V-240V , 50/60Hz |
|
Dimension : |
595x595x11mm |
|
Norminal Power : |
25W-40W option |
| LED Chip : | San'an / Philips / Osram (option) |
|
Luminous Flux (LM) : |
100lm/w-150lm/w (option) |
|
CCT : |
2700K / 3000K / 4000K / 6000K / 6500K (option) |
|
CRI : |
Ra>80/90/95/97 full spectrum (option) |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<23 / UGR<19 / UGR17 / UGR16 (option) |
|
Materials : |
Aluminum frame , PMMA LGP |
|
IP Rated : |
IP68 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ERP , ETL , SAA , RCM , CB |
IP68 LED panel , waterproof LED panel light , over 100lm/w IP68 LED panels , LED ceiling panel IP68 , high-quality edge-lit IP68 LED panels , 600x600mm IP68 LED panel lights .
Package
Carton Size : 65x25x69cm , 5units/ctn. ( Contain inner box )
Applications
Hospital , Swimming pool , LED chips manufacturing base , Bathroom , Foyer , Office , Meeting room , Shop , Retail , Super market , Corridor , Spray booth , operating room ,etc .
