Edge-lit LED Panel UGR < 19 100lm/w 1200x300

Model: S-PL1203-S16-3610019

- Super slim and flat design
- High light efficiency output 100lm/w
- UGR<19 , micro-prismatic diffuser
- 100% PMMA Non-yellowing LGP
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0

Product Details

Edge-lit LED panel , LED 36W , high light efficiency 100lm/w , luminous output 3600lm . 100% PMMA non-yellowing light guide . Matte white RAL9016 finish aluminum frame , corners gap free . High brightness , 80% energy saving .

We always commit to the healthy lighting , this type of LED panel with new micro-prismatic diffuser , low glare UGR<19 , protect the eyes , make the lights more soft and comfortable .

Standard LED driver , power factor over 0.95 , flicker free . It does not harm your health and can improve the quality of photos taken with your digital camera or mobile phone .

Fantastic heat dissipation performance . Long lifespan 50000H , this high quality LED panel comes with 5 years warranty , providing a peace of mind when purchasing and afer sales .

Installations : Recessed , suspending mounted , surface mounted , spring clips , ideal for T-bar ceilings .

Sample is available , fast delivery within 20 days for the bulk orders .



Specifications

Input Voltage :

AC100V-240V , 50/60Hz

Dimension :

1200x300x9mm

LED Chip : San'an / Philips / Osram (option)

Norminal Power :

36W

Luminous Flux (LM) :

100lm/w

CCT :

2700K / 3000K / 4000K / 5000K / 6000K / 6500K

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / AGT / Osram (option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<19

Materials :

Aluminum frame , PMMA LGP

IP Rating :

IP40

Lifetime :

50000H (L80B20)

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off  / Push / Triac / 0-10V / 1-10V / DALI dimming

Package

Carton Size : 130x20x34.5cm , 5units/ctn. ( Contain inner box )

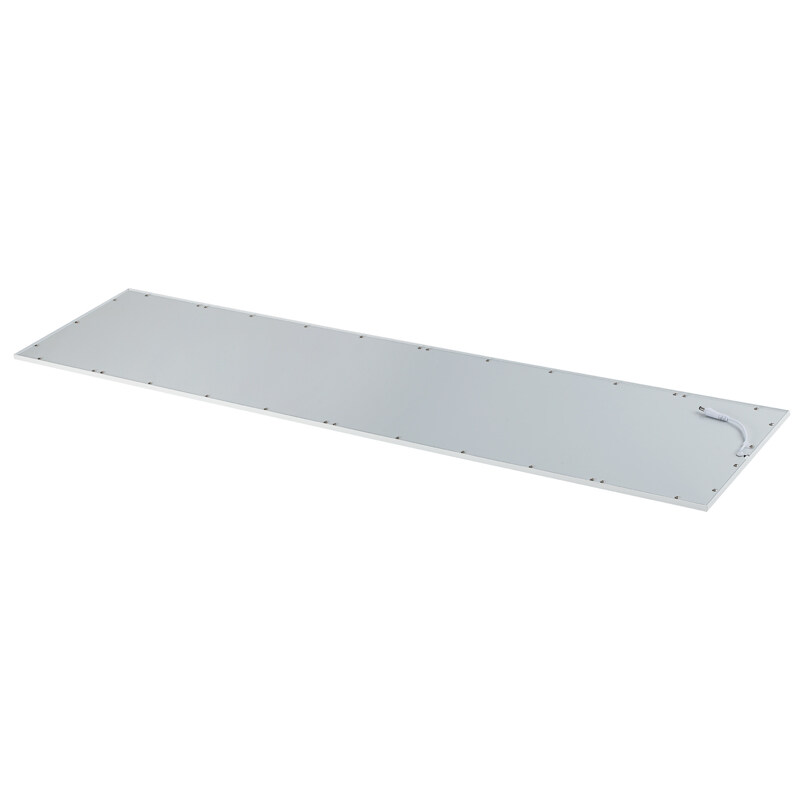

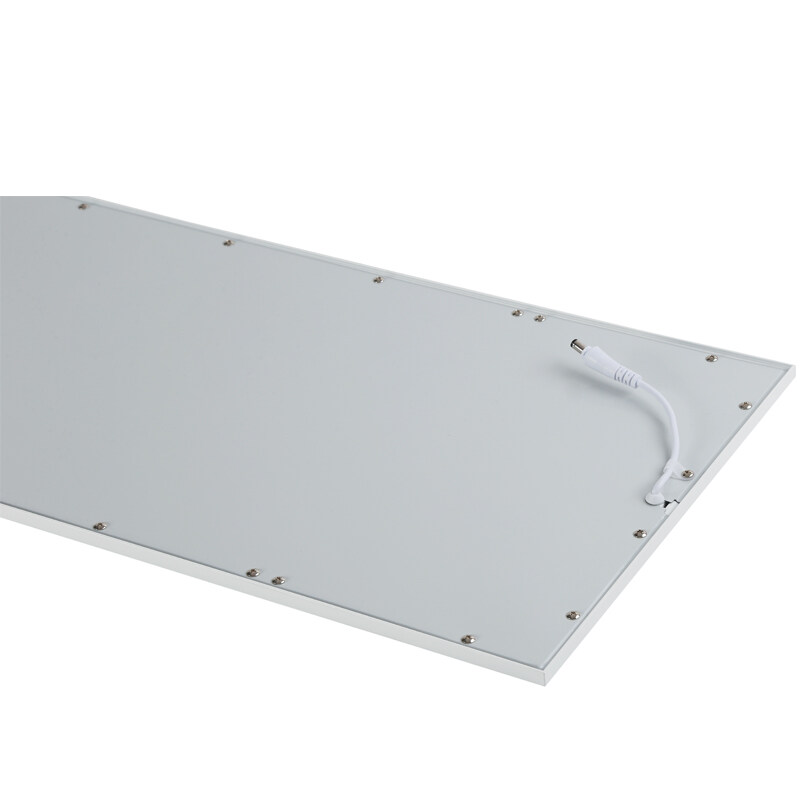

led panel light 1200x300

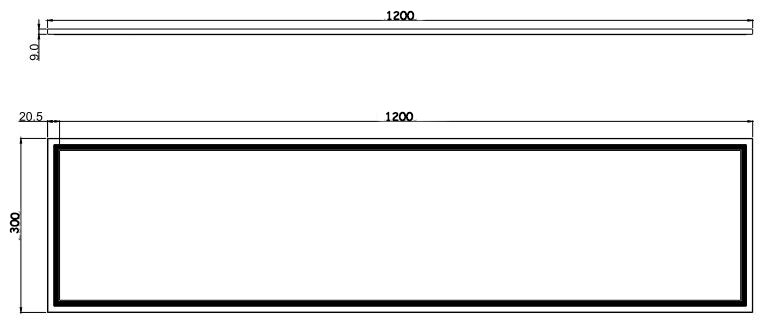

Dimensions

Ultra flat and slim design

led panel light 1200x300x9

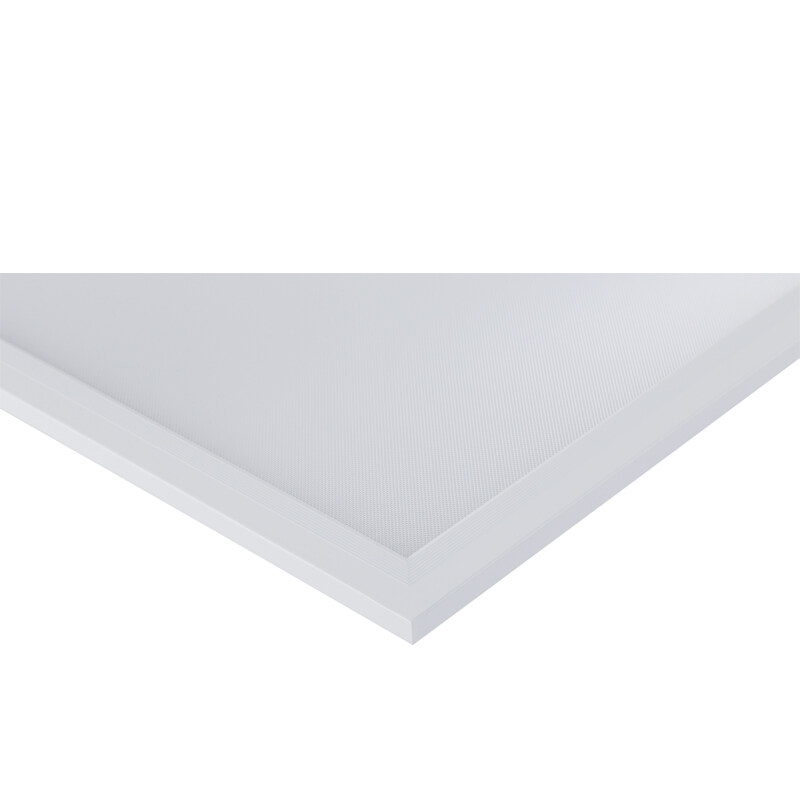

Photometric



Micro-prismatic diffuser , UGR<19

UGR<19 LED panel light



led acrylic light panel supplier





Applications

School, Office, Education areas, Meeting room, Shop, Retail, Supermarket, Corridor, Bank, Reception areas, etc .
