- Ultra slim and flat design
- High light efficiency 130lm/w output
- UGR17 , micro-prismatic diffuser
- 100% PMMA non-yellowing light guide
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details

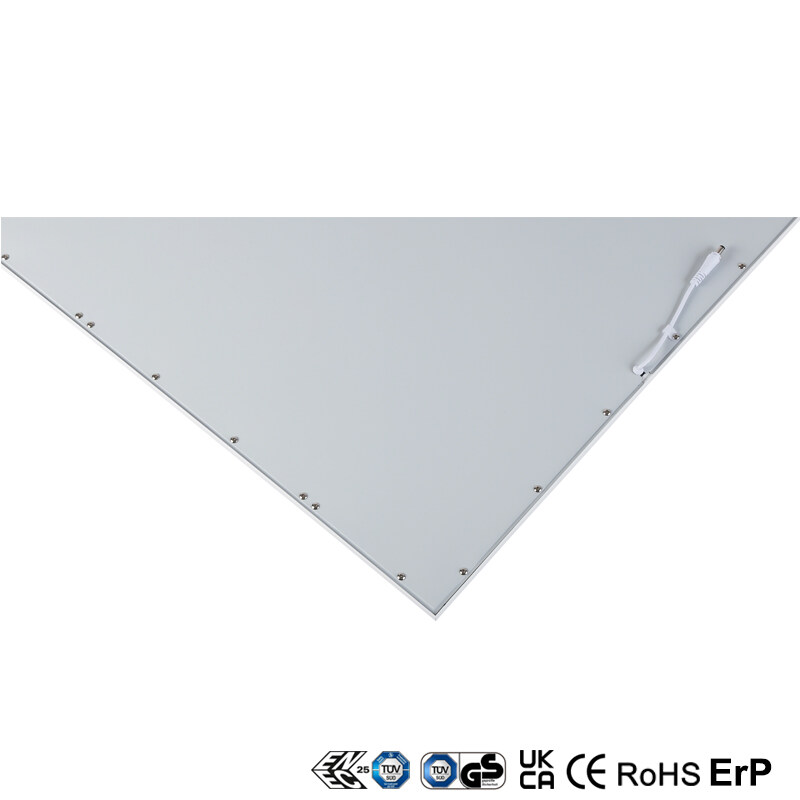

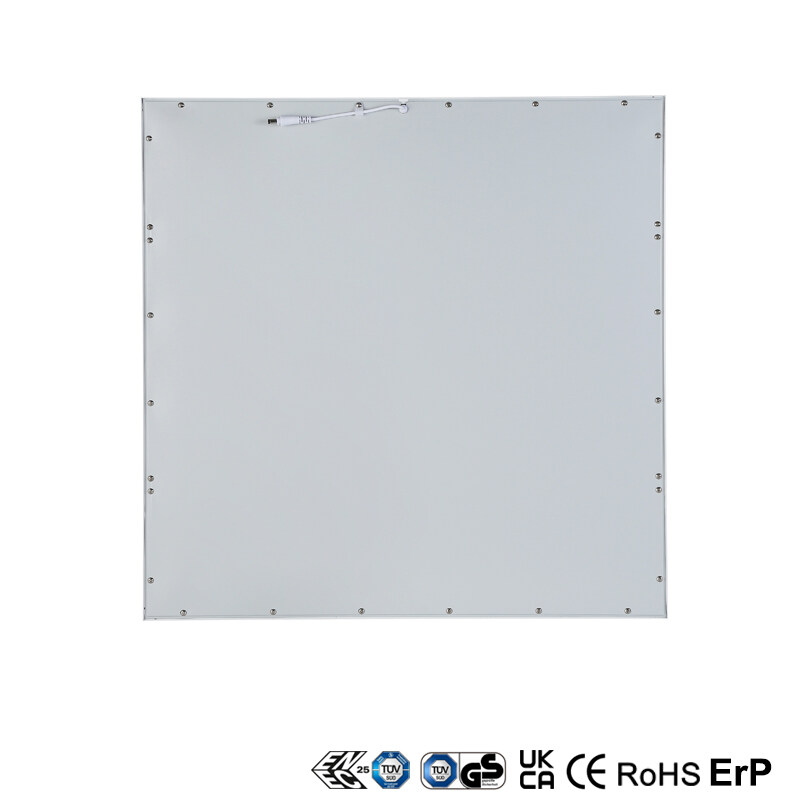

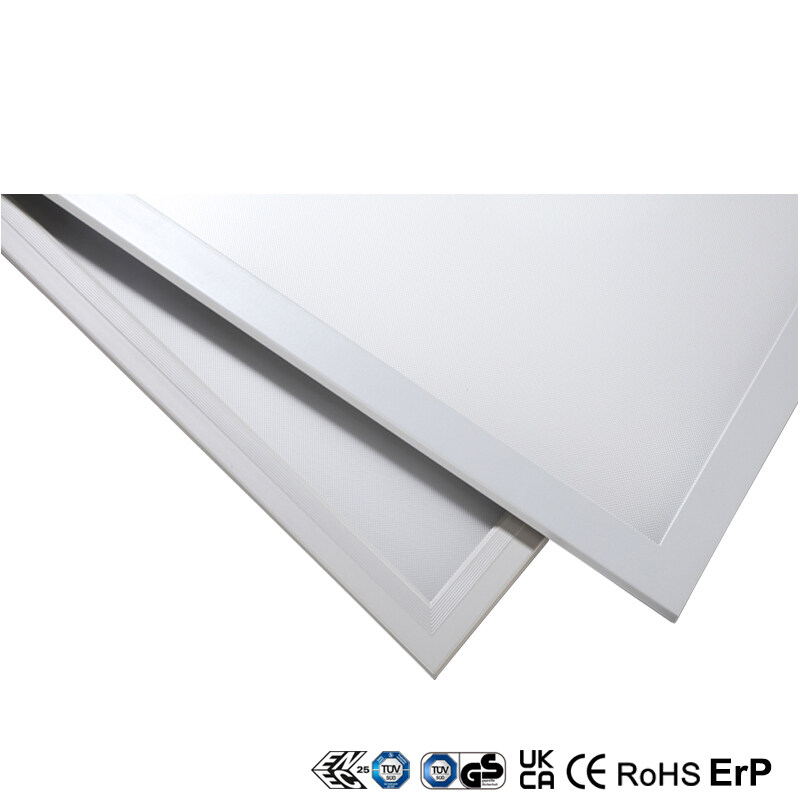

Edge-lit LED panel with high light efficiency output 130lm/w , low-glare UGR value 17 with new micro-prismatic diffuser , makes the environment more gentle and natural , more comfortable lights , reduce discomfort eye glare , it is very high performance and advanced . SMD LED technology edge lit panel light , neutral white 4000K . Non-yellowing 100% PMMA light guide , high quality rustless back cover , EVA cotton . Power factor over 0.95 and flicker free driver . Super durable and clean finished white powder coating aluminum outer frame , which match the ceiling grids perfectly , silver and black color can be optional . Excellent heat dissipation performance , low maintenance . Long life span over 50000H , 5 years warranty . Energy saving and reliable . Optimum brightness and uniformity can be achieved to the size of the area . Popular in EU market , compliant with ENEC , TUV-GS , CE , UKCA , RoHS , ErP certificate . Wide range applications for office , retail , shop , supermarket , showroom , schools , education areas , healthy center , and other commercial and special areas .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
595x595x9mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
30W , SMD4014 |
|
Luminous Flux (LM) : |
130lm/w |
|
CCT : |
4000K / 6500K (option) |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR17 |
|
Materials : |
Aluminum frame , PMMA LGP |
|
IP Rated : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ERP |

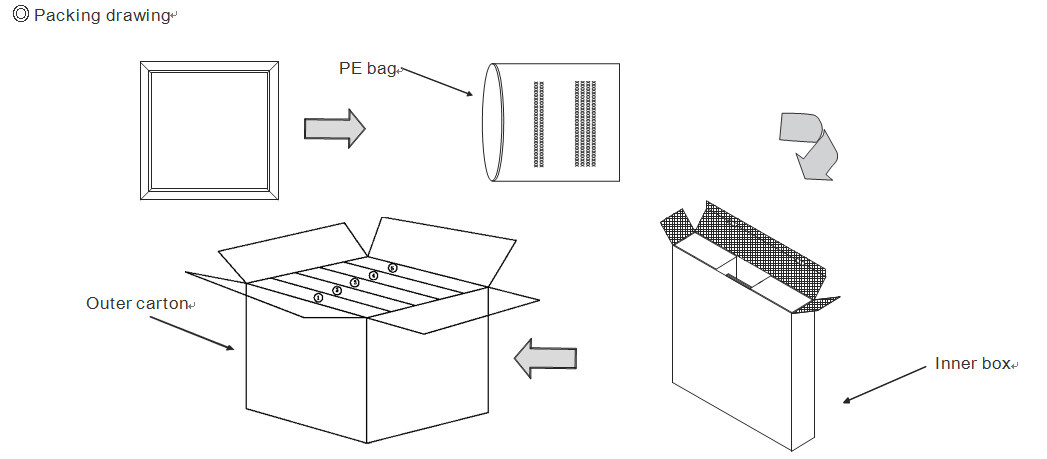

Package
Carton Size : 63x20x67.5cm , 5units/ctn. ( Contain inner box )

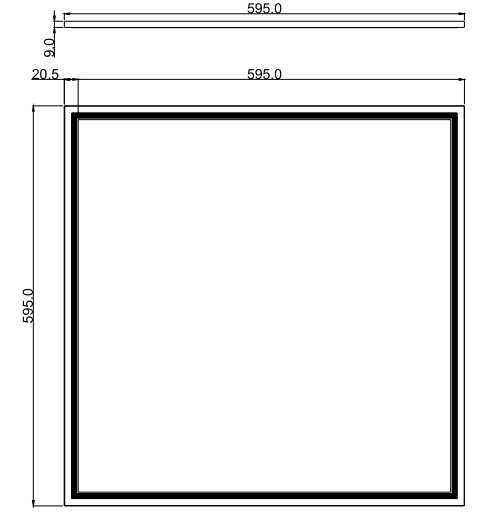

Dimensions
Ultra slim design , only 9mm overall height

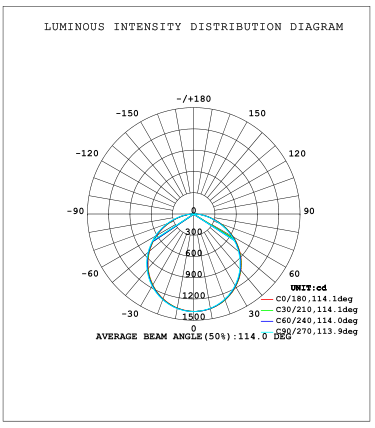

Photometric

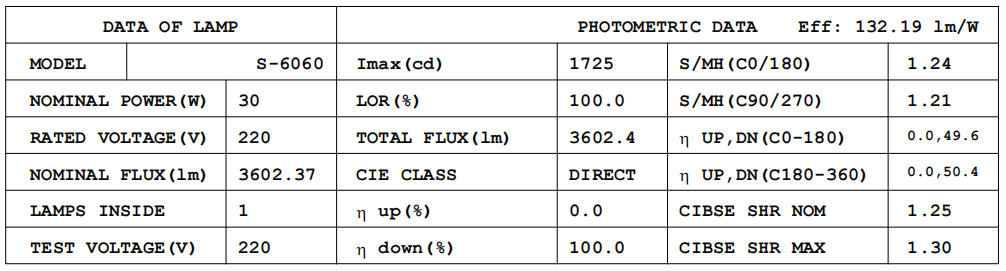

IES Test Report

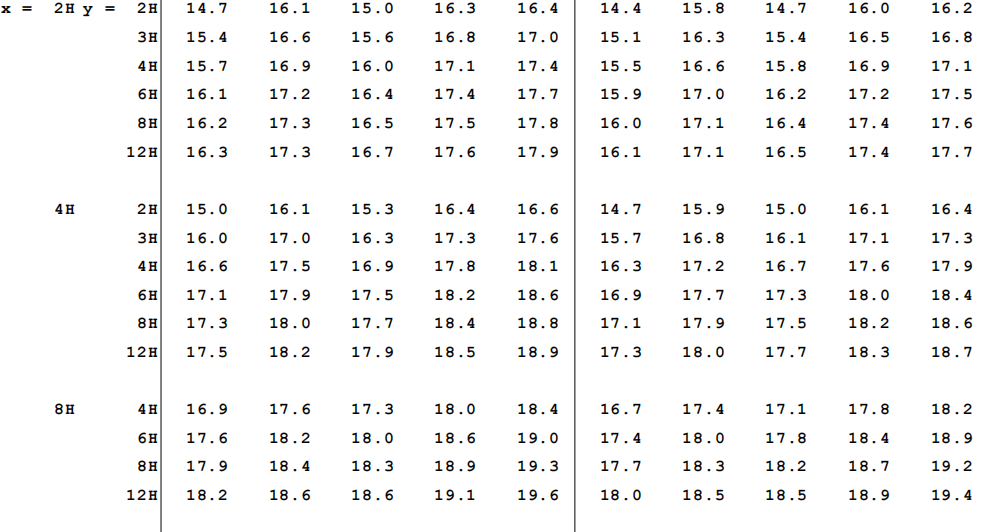

UGR Value (17)
Light Efficiency Output >130lm/w

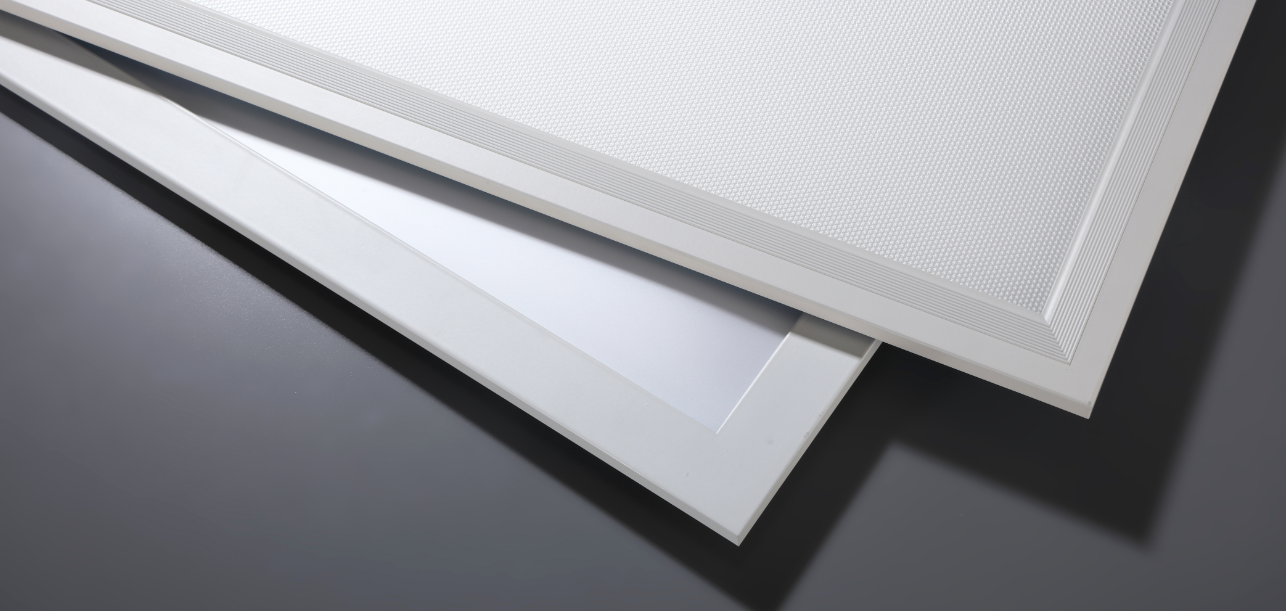

Micro-prismatic diffuser detail
Without cracks of the frame detail
Applications
Office , School , Education areas , Meeting room , Shop , Retail , Super market , Corridor , etc .
