- Ultra slim and flat design
- SMD4014 LED
- High light efficiency 130lm/w output
- 100% PMMA non-yellowing light guide
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0

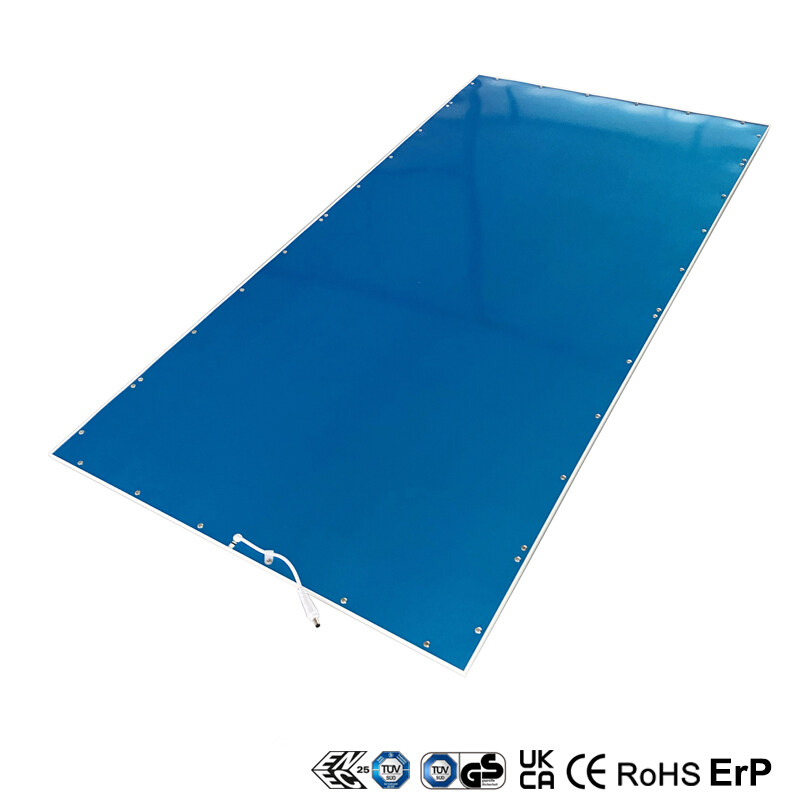

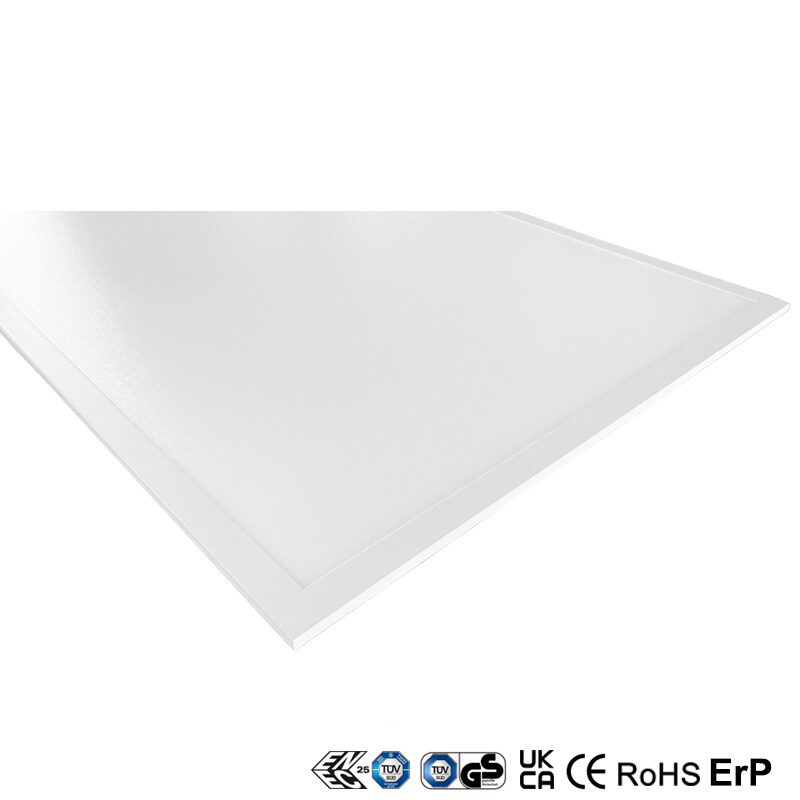

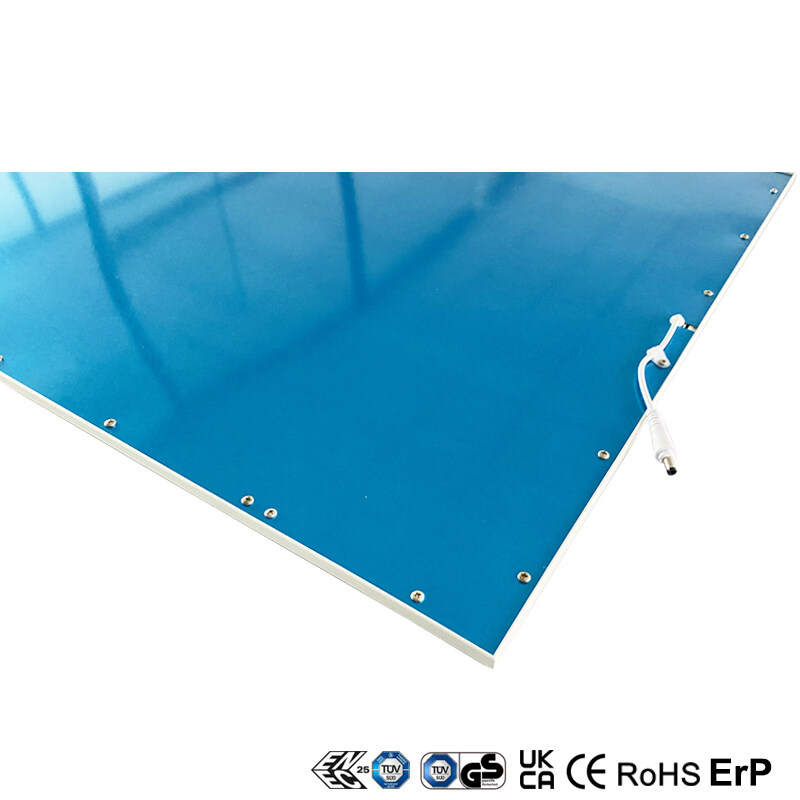

Product Details
1200x600 edge-lit large LED panel , high lumen 7800lm output , light efficiency 130lm/w , with advanced SMD LED technology . Strong and firm aluminum outer frame with RAL9016 white powder coating , clean and durable finished , special color silver or black is available , no gap junction . Non-yellowing 100% PMMA light guide plate . EVA cotton . High power factor over 0.95 and flicker free high grade external driver . Fantastic heat dissipation performance . Long life time over 50000H , 5 years warranty , greatly reducing the maintenance , longer service time . Environmentally friendly energy saving and reliable . Optimum brightness and uniformity can be achieved to the size of the area .
Easy and quick installation suitable for recessed , suspending and surface mounting , relevant installed accessories are optional . Special installation method can be customized .
Size 1195x595mm on the request of the European market . Compliant the EU market certificates of ENEC , TUV-GS , CE , UKCA , RoHS , new ErP . Meets the Blue Light Hazard Regulation RG0 .
Wide range applications for office , meeting room , reception areas , retail , shop , supermarket , shopping mall , showroom , schools , education areas , healthy center , bank , and other commercial and industrial projects .
Sample is available to test , and fast delivery within 20 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
1195x595x9mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
60W |
|
Luminous Flux (LM) : |
130lm/w |
|
CCT : |
3000K / 4000K / 6500K |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<23 |
|
Materials : |
Aluminum frame , PMMA LGP |
|
IP Rated : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ERP |
Package
Carton Sizes : 130*21*65 cm , 5units/ctn. ( Contain inner box )

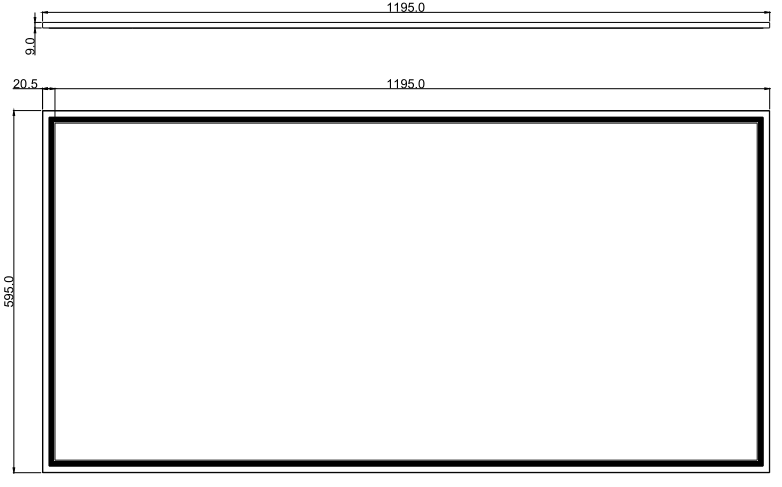

Dimensions
Ultra flat and slim design

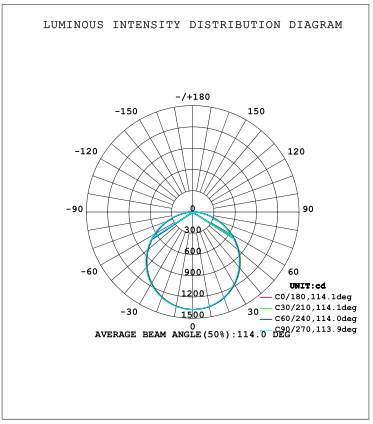

Photometric

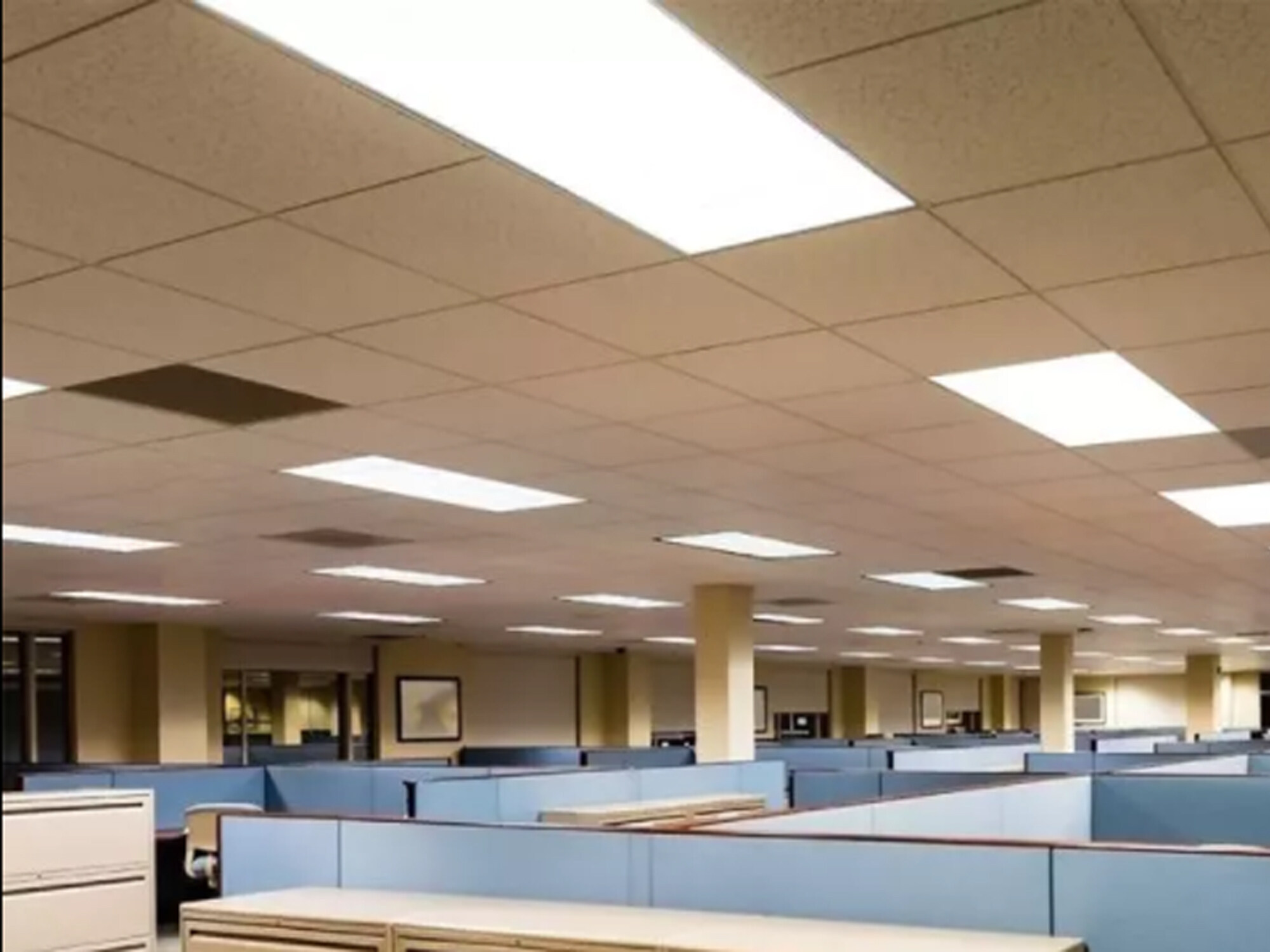

Applications
Commercial areas , Office , Meeting room , Shop , Retail , Super market , Corridor , etc .
