- Ultra slim and flat design
- High efficiency SMD4014 LED
- 100% PMMA non-yellowing light guide
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details
600x600 non-yellowing edge-lit LED panel light with 100% PMMA light guide , ultra slim and flat design . High quality SMD LED technology edge lit panel , light efficiency output 100-120lm/w . Fantastic durable and clean finished RAL9016 white powder coating aluminum frame , no gap junction for four corners . No flickering , high power factor over 95% . Thanks to the color rendering index (CRI) on our panel light over 80 , making everything in environment are more natural and true . Easy and quick installation , suitable for recessed , suspending and surface mounting with relevant accessories optional . Very excellent heat dissipation performance . Low maintenance . Long life span over 50000H , 5 years warranty . Energy saving and reliable LED panels . Size 595x595mm on the request of the European market . Compliant the EU market certificate of ENEC , TUV-GS , CE , UKCA , RoHS , new ErP . Meets the Blue Light Hazard Regulation RG0 .
Wide range applications for office , meeting room , retail , shop , supermarket , shopping mall , showroom , schools , education areas , healthy center , and other commercial and special areas .
Sample is available to test , and fast delivery within 20 days for the bulk orders .
Specifications
Input Voltage : |
AC200V-240V , 50/60Hz |
Dimension : |
595x595x9mm |
LED Chip : | San'an / Philips / Osram (option) |
Norminal Power : |
40W , SMD4014 |
Luminous Flux (LM) : |
100lm/w - 120lm/w |
CCT : |
2700K / 3000K / 4000K / 6000K / 6500K (option) |
CRI : |
Ra>80 |
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
Power Factor : |
PF>0.95 |
UGR(Unified Glare Rating) : |
UGR<23 |
Materials : |
Aluminum frame , PMMA LGP |
IP Rated : |
IP40 |
Lifetime : |
50000H |
Warranty : |
5 years |
Working Ambient Temp. : |
-20~+40‚ÑÉ |
Working Ambient Humidity : |
10%~90% |
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ErP |
Package
Carton Size : 63x20x67.5cm , 5units/ctn. ( Contain inner box )

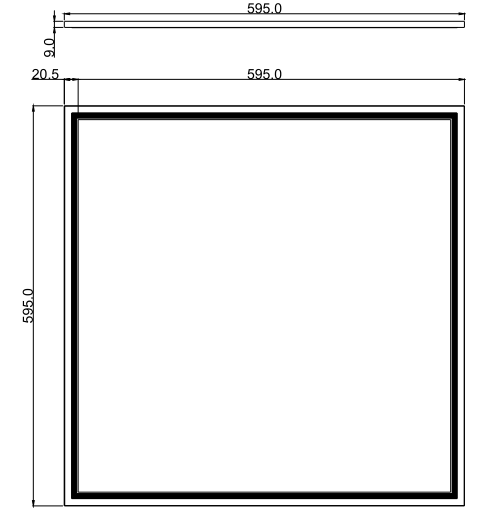

Dimensions
Ultra slim design , only 9mm overall height
Photometric
Applications
Office , Meeting room , Shop , Retail , Super market , Shopping mall , Corridor , Reception area , Home , Showroom , School , Bank , etc .
