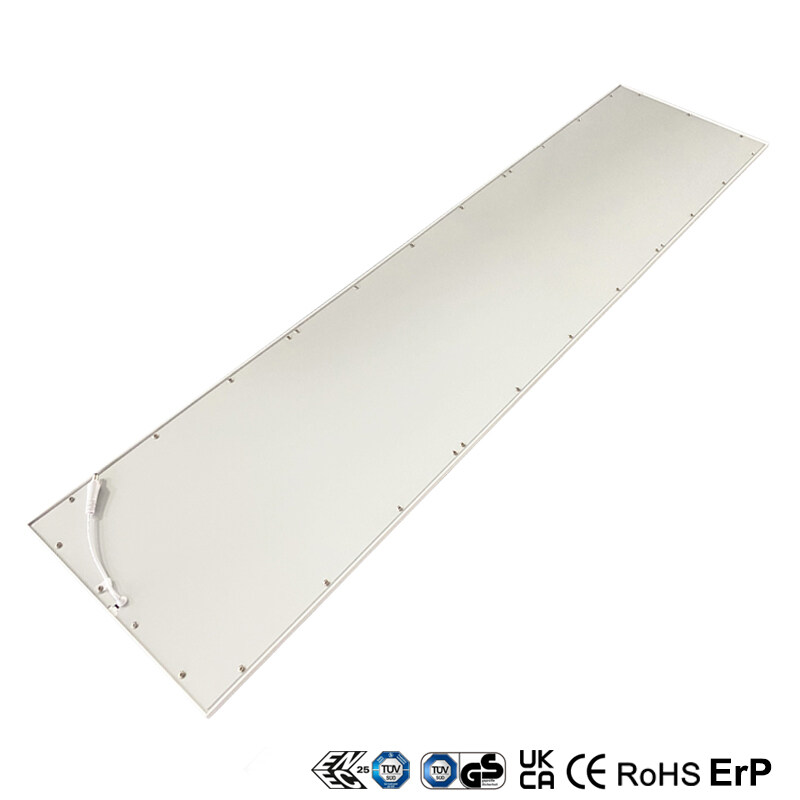

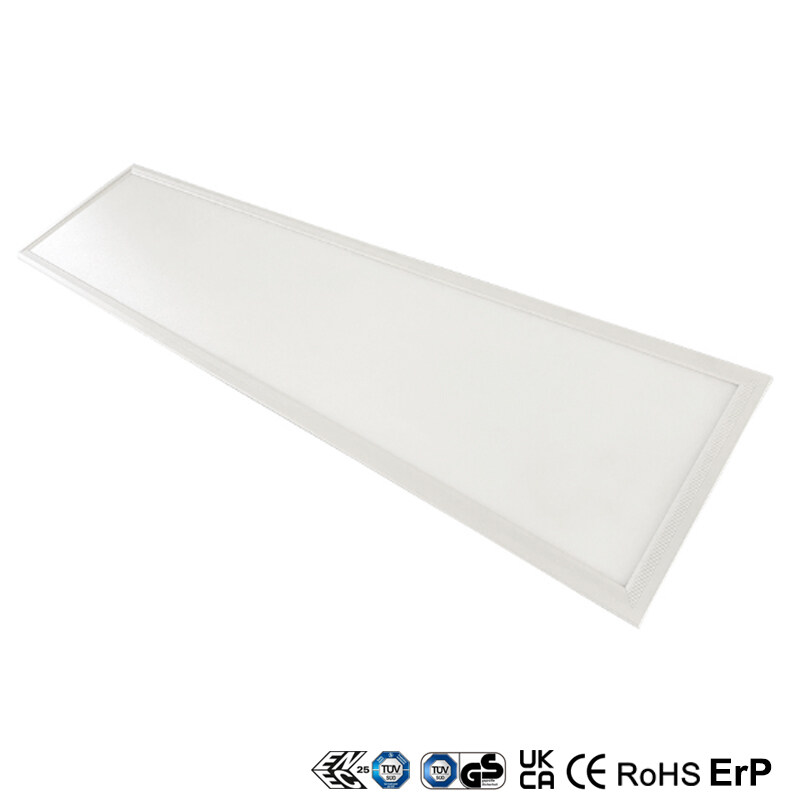

Edge-lit LED Panel Light 36W 120lm/w 1200x300

Model: S-PL1203-S15-3612023

- Ultra flat design

- High light efficiency 120lm/w output

- Durable powder-coating aluminum frame

- 100% PMMA non-yellowing light guide

- Flicker free

- Long lifetime 50000H

- 5 years warranty

- RG0

Product Details

Rectangle 1200x600 edge-lit office LED panel . Advanced SMD LED technology , the panel high lumen efficiency output 120lm/w . Rustless back cover , stronger and firmer aluminum outer frame with fantastic durable and clean powder coating finished , RAL9016 white , special black and silver color are available , no gap junction . Non-yellowing 100% PMMA material light guide plate . EVA cotton . High power factor over 0.95 driver , flicker free . Excellent heat dissipation performance . Long life time over 50000H , 5 years warranty , greatly reducing the maintenance . Environmentally friendly energy saving and reliable .

Easy and quick installation suitable for recessed , suspending and surface mounting , relevant installed accessories are optional . Special installation method can be customized .

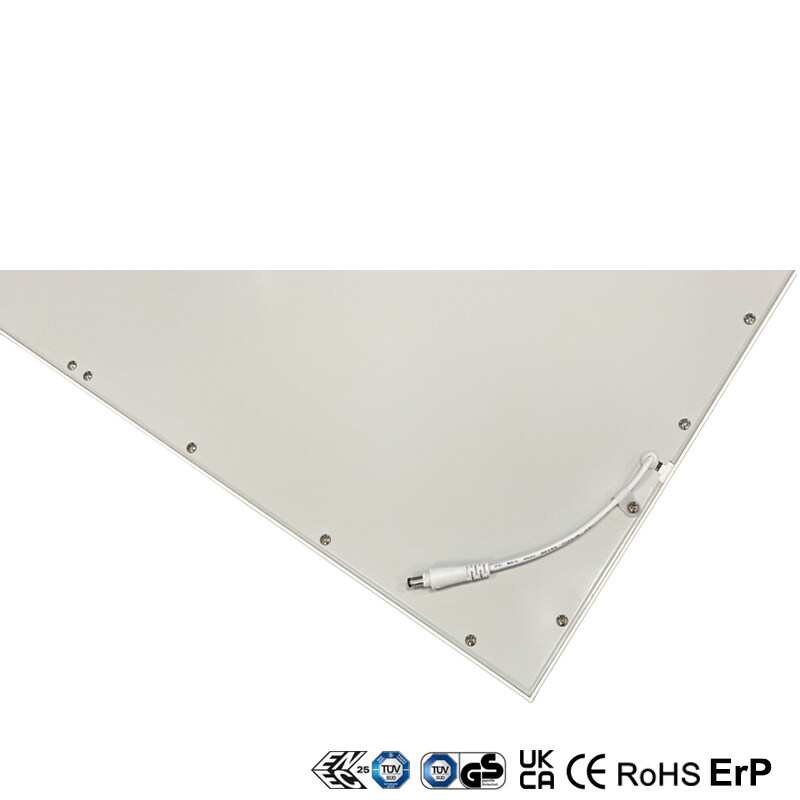

Size 1195x295mm on the request of the European market . Compliant the EU market certificates of ENEC , TUV-GS , CE , UKCA , RoHS , new ErP . Meets the Blue Light Hazard Regulation RG0 .

Wide range applications for office , meeting room , retail , shop , supermarket , shopping mall , showroom , schools , education areas , healthy center , bank , and other commercial and special projects .

Sample is available to test , and fast delivery within 20 days for the bulk orders .





Specifications

Input Voltage :

AC200V-240V , 50/60Hz

Dimension :

1195x295x11mm

LED Chip :  San'an / Philips / Osram (option)

Norminal Power :

36W

Luminous Flux (LM) :

120lm/w

CCT :

4000K / 6500K

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / AGT / Osram(Option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<23

Materials :

Aluminum frame , PMMA LGP

IP Rated :

IP40

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS , ERP

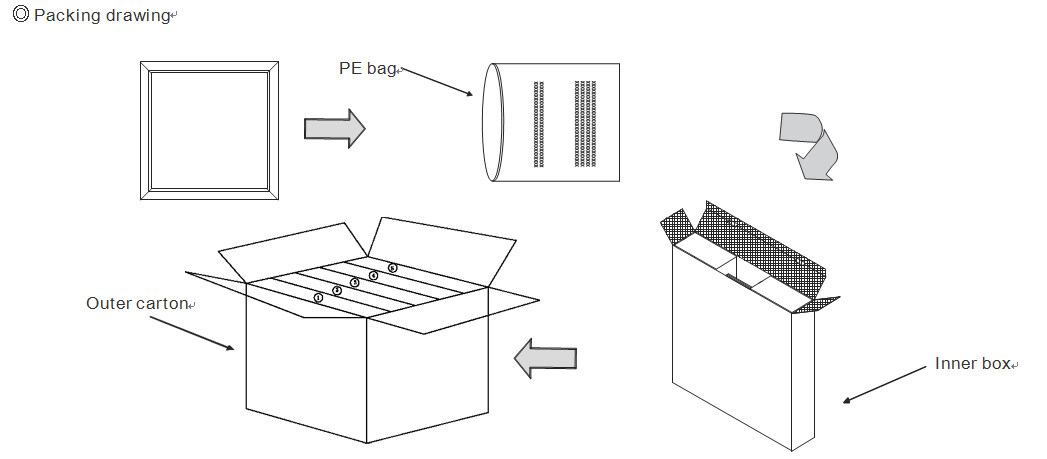

Package

Carton Size : 130x19.5x34.5cm , 5units/ctn. ( Contain inner box )

made in China LED panel light

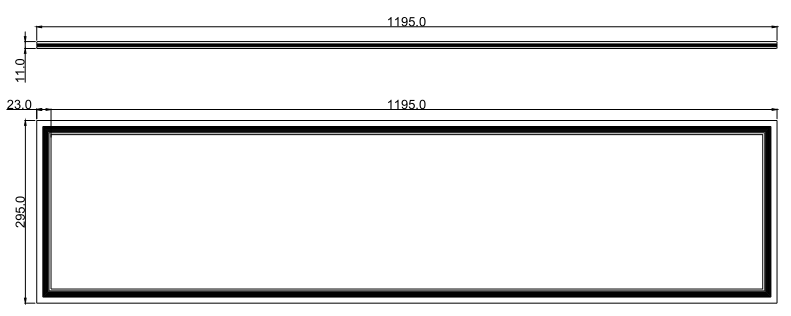

Dimensions

led acrylic light panel supplier

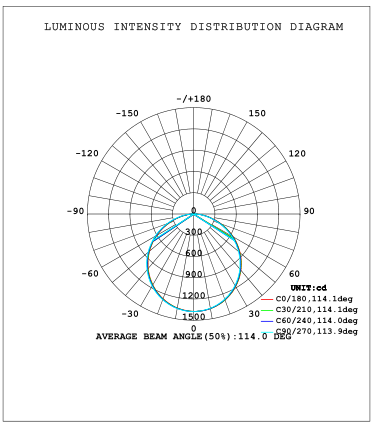

Photometric

led panel light raw material supplier

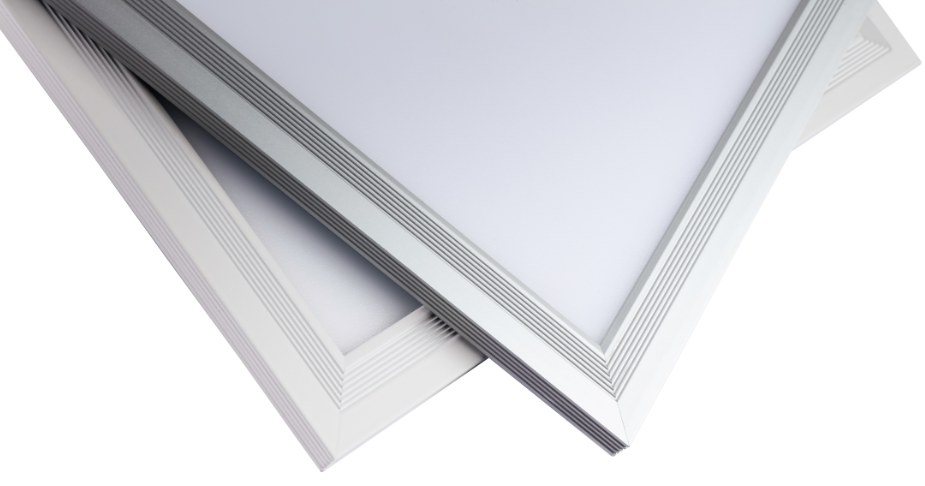

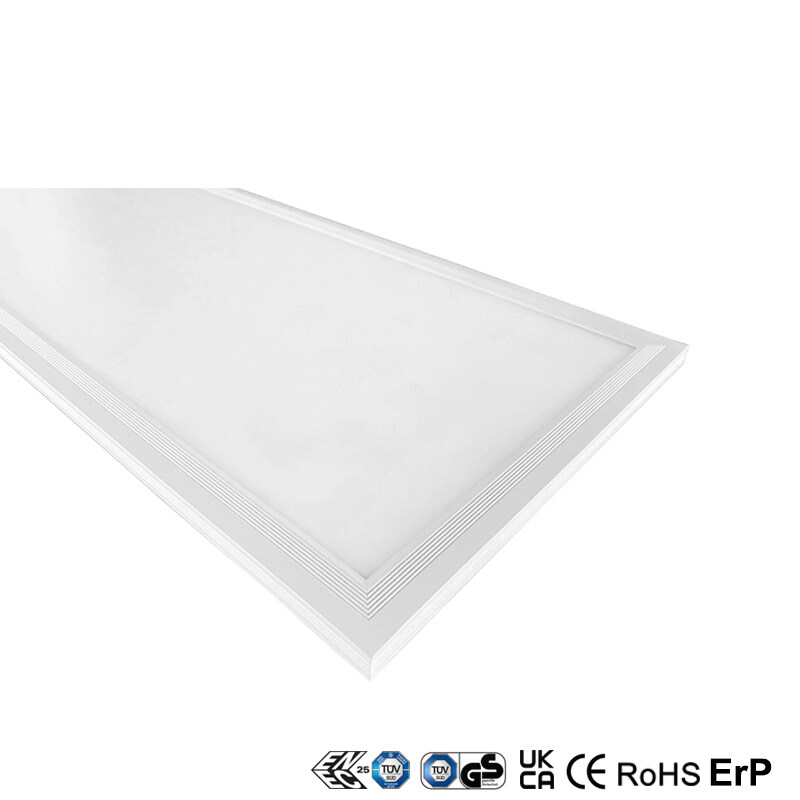

Frame Detail

Without gap junction of four corners and the strong outer frame design

edgelit LED panel light

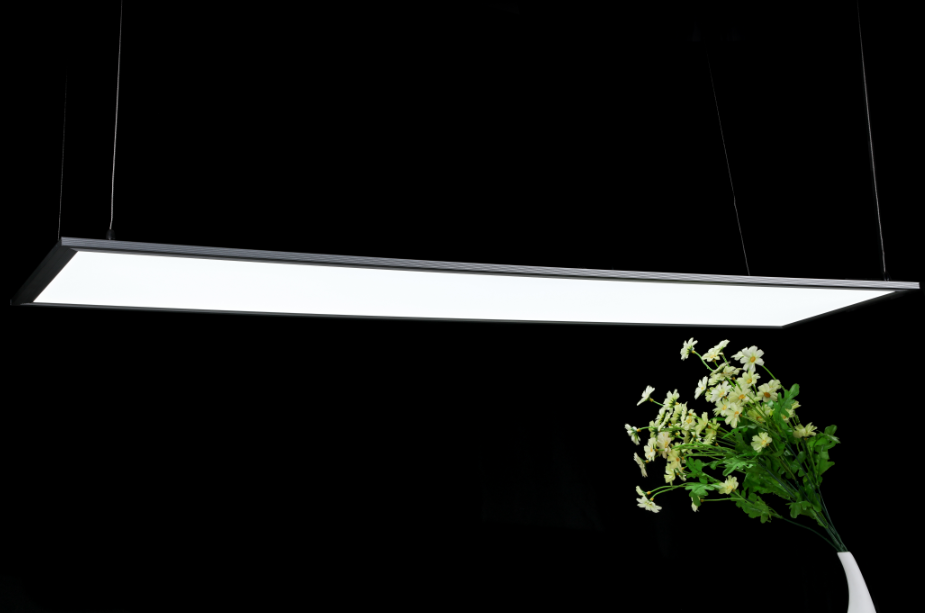

Color temperature

Edge-lit LED panel light



LED panel manufacture



made in China LED panel light



Applications

Commercial areas , Office , Meeting room , Shop , Retail , Super market , Corridor , etc .
