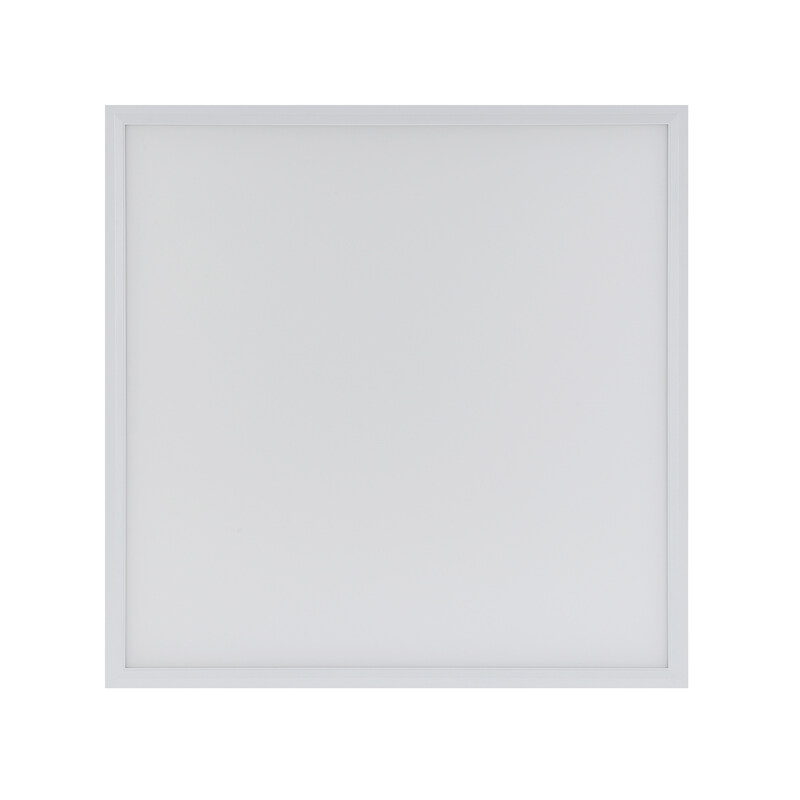

Edge-lit LED Panel Light 36W 100lm/w 600x600

Model: S-PL0606-S16-P-36100

- Ultra slim and flat design

- High efficiency SMD4014 LED

- 100% PMMA non-yellowing light guide

- Flicker free

- Long lifetime 50000H L80/B20

- 5 years warranty

- RG0

Product Details

600x600 non-yellowing edge-lit LED panel light with 100% PMMA light guide , ultra slim and flat design . High quality SMD LED technology edge lit panel , light efficiency output 100lm/w . Fantastic durable and clean finished RAL9016 white powder coating aluminum frame , no gap junction for four corners . No flickering , high power factor over 95% . Thanks to the color rendering index (CRI) on our panel light over 80 , making everything in environment are more natural and true . Easy and quick installation , suitable for recessed , suspending and surface mounting with relevant accessories optional . Very excellent heat dissipation performance . Low maintenance . Long life span over 50000H , 5 years warranty . Energy saving and reliable LED panels . Size 600x600mm on the request of the South American market . Meets the Blue Light Hazard Regulation RG0 .

Wide range applications for office , meeting room , retail , shop , supermarket , shopping mall , showroom , schools , education areas , healthy center , and other commercial and special areas .

Sample is available to test , and fast delivery within 20 days for the bulk orders .



Specifications

Input Voltage :

AC100V-240V , 50/60Hz

Dimension :

600x600x9mm

LED Chip :  San'an / Philips / Osram (option)

Norminal Power :

36W , SMD4014

Luminous Flux (LM) :

100lm/w

CCT :

2700K / 3000K / 4000K / 6000K / 6500K (option)

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / AGT / Osram (option)

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<23

Materials :

Aluminum frame , PMMA LGP

IP Rated :

IP40

Lifetime :

50000H L80/B20

Impact Resistance :  IK07

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

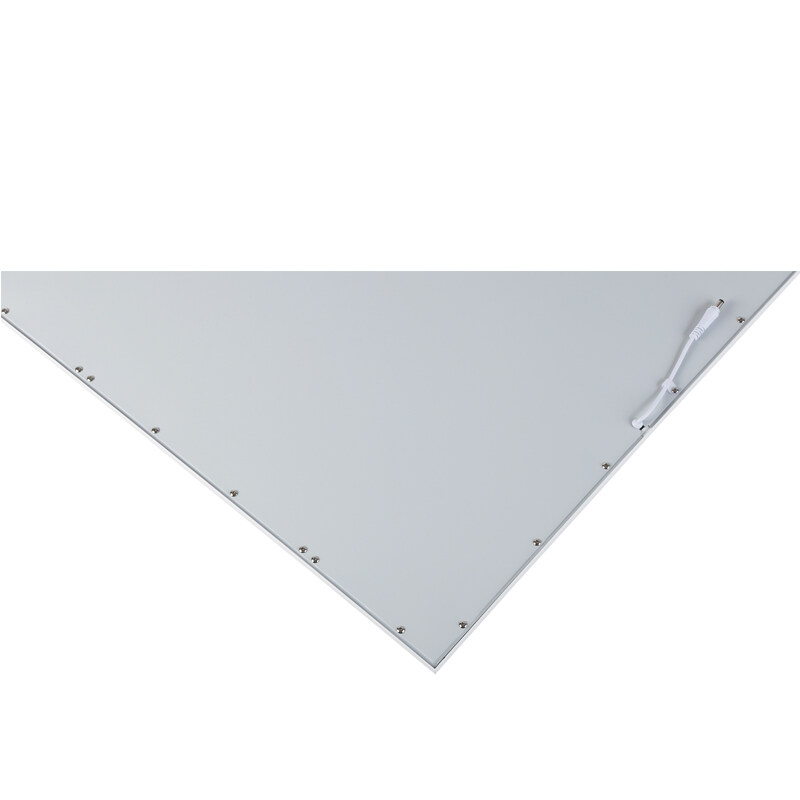

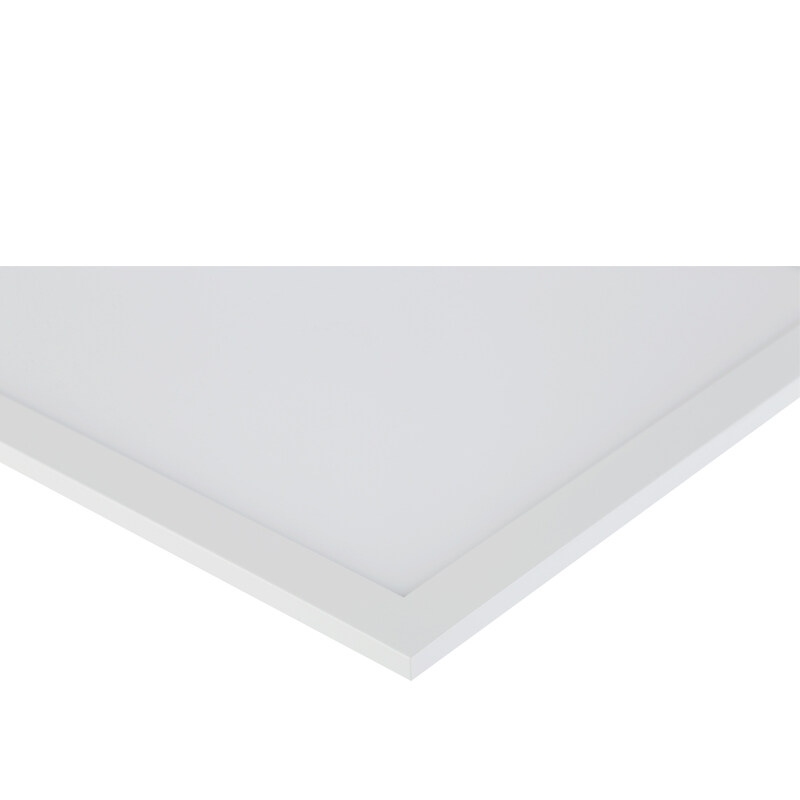

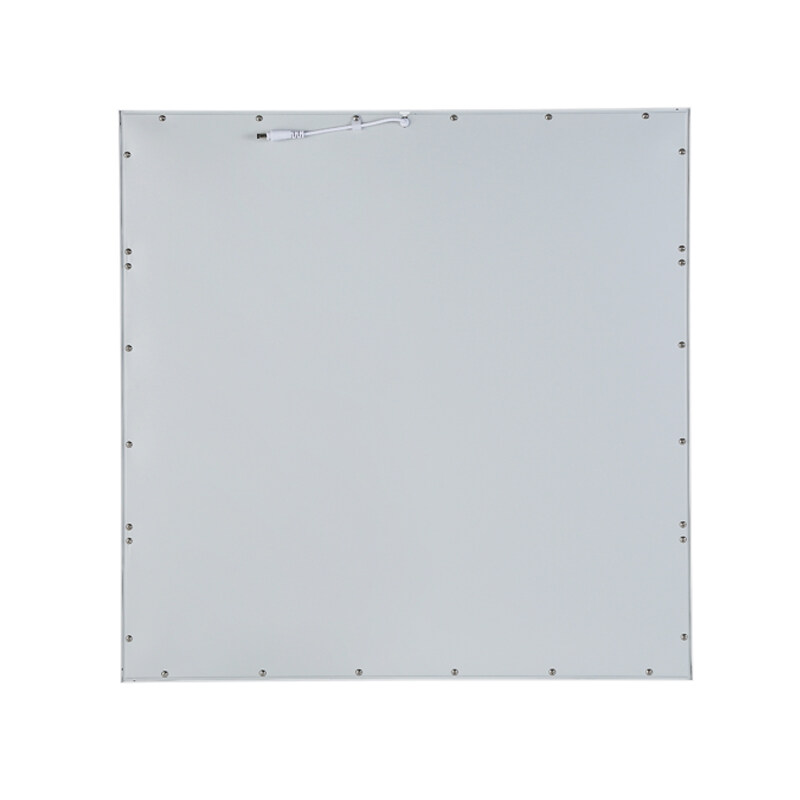

Product Detail

100lm/w LED Panel

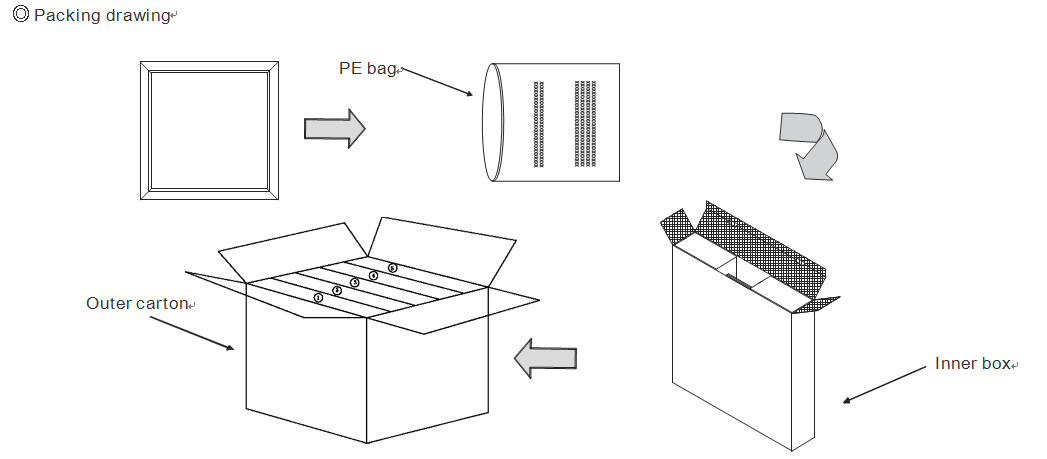

Package

Carton Size : 63x20x67.5cm , 5units/ctn. ( Contain inner box )

LED Panel Light Supplier in China

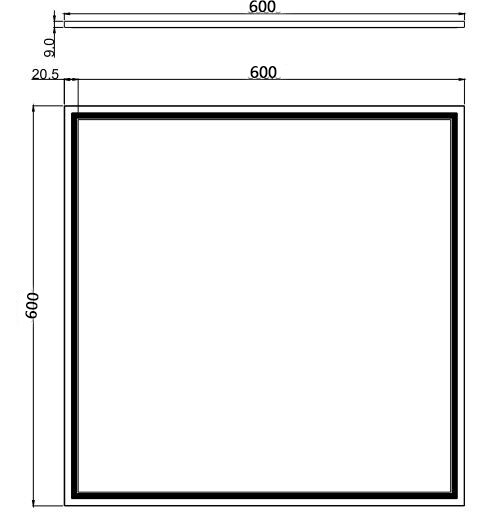

Dimensions

Ultra slim design , only 9mm overall height

quality LED Panel Light Supplier in China

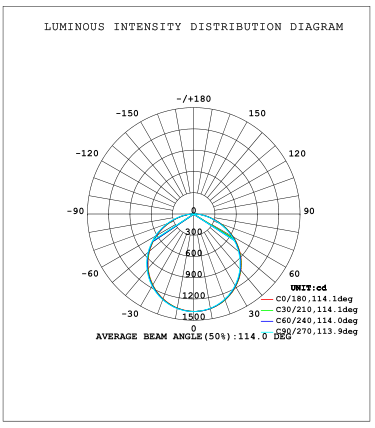

Photometric

100lm/w LED panel for sale

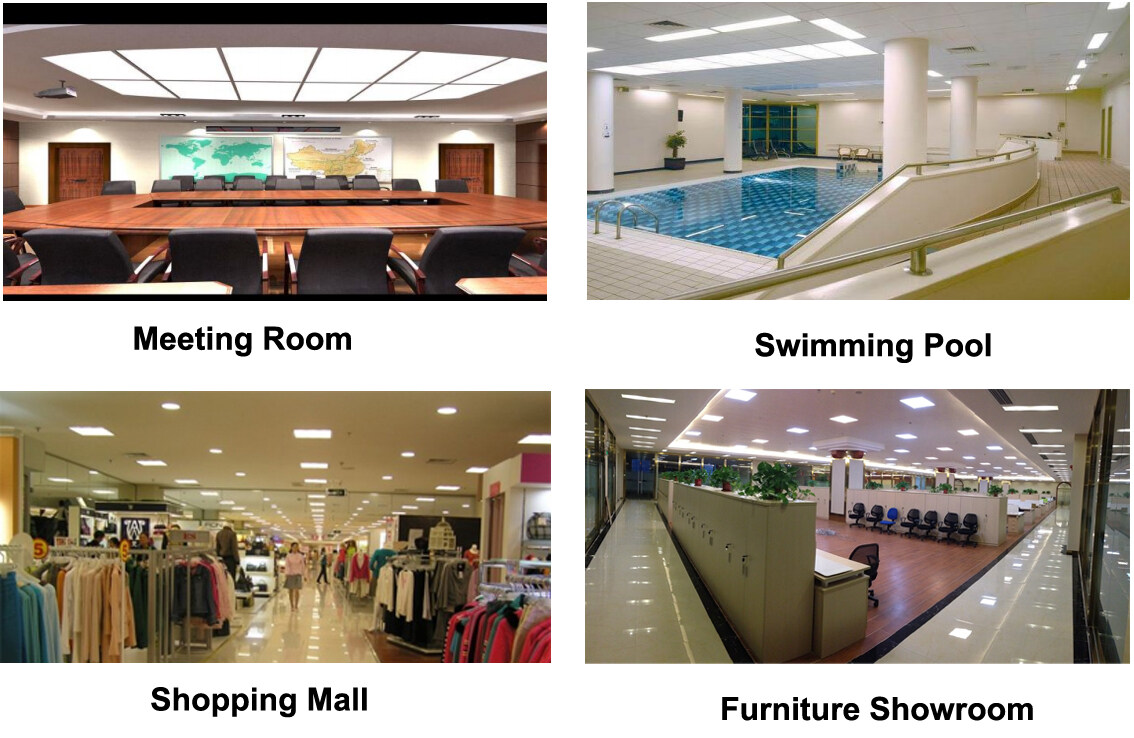

Applications

Office , Meeting room , Shop , Retail , Super market , Shopping mall , Corridor , Reception area , Home , Showroom , School , Bank , etc .

Edge-lit LED panel light
