- Advanced technology SMD2835 LED
- High light efficiency 150lm/w output
- 100% PMMA non-yellowing light guide
- Strong and durable aluminum frame
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details
Energy and power saving 25W-30W with high light efficiency 150lm/w output LED panel . Edge lit LED light panel , cool white and warm white optional . With stronger and firmer aluminum outer frame , clean and smooth powder coating white , silver or black finish . No flicking driver high power factor over 0.95 . Better heat dissipation performance . Non-yellowing 100% PMMA light guide plate . Thanks to the high quality and bright 2835 LED light source , less power and more lumens . Meets the Blue Light Hazard Regulation RG0 . Low maintenance . Long lifetime over 50000H , 5 years warranty . Easy and quick to install , popular in EU market , compliant with ENEC , TUV-GS , CE , UKCA , RoHS , ErP certificate . Perfect for wide range of commercial settings , large areas and industrial projects .
Sample is available to test , and fast delivery within 25 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
595x595x11mm |
| LED Chip : | San'an / Philips / Osram (option) |
|
Norminal Power : |
25W-30W , SMD2835 |
|
Luminous Flux (LM) : |
150lm/w |
|
CCT : |
4000K / 6500K |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<23 |
|
Materials : |
Aluminum frame , PMMA LGP |
|
IP Rated : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ERP |

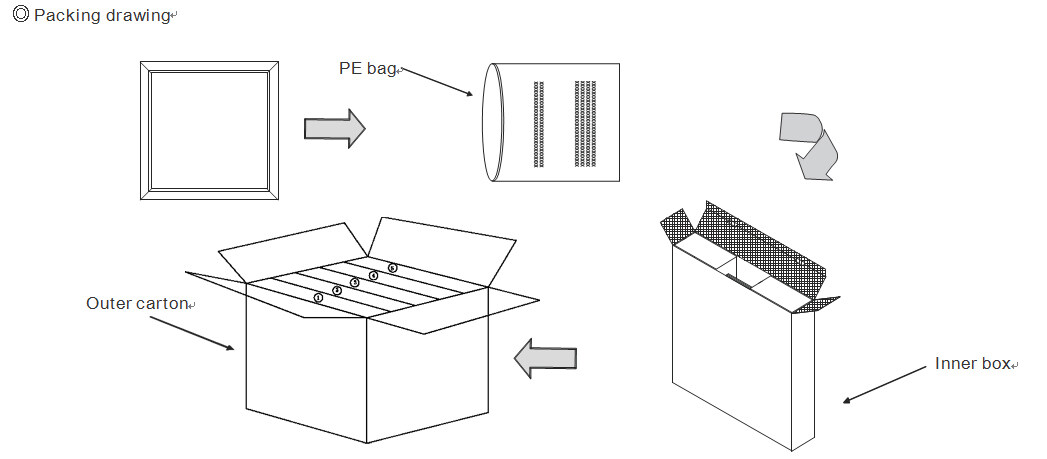

Package
Carton Size : 63x20x67.5cm , 5units/ctn. ( Contain inner box )

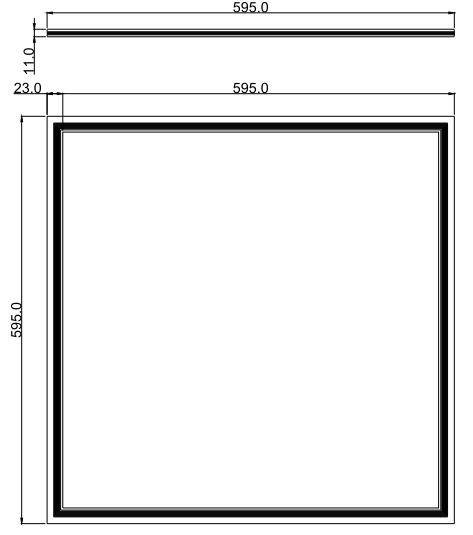

Dimensions

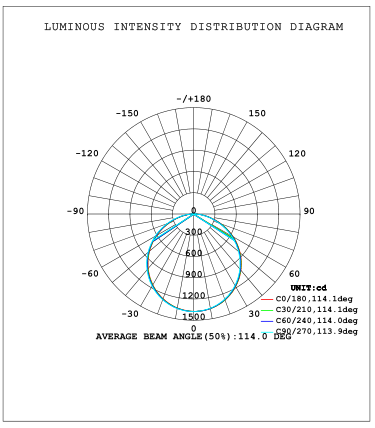

Photometric

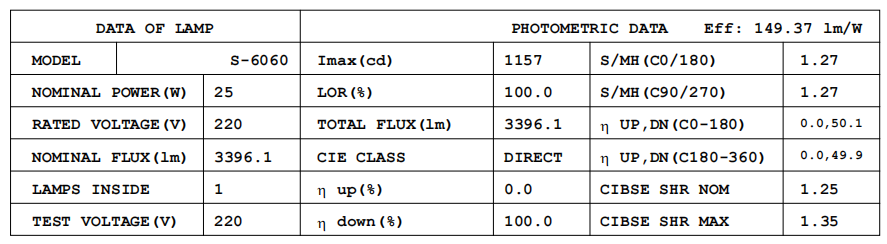

IES test report

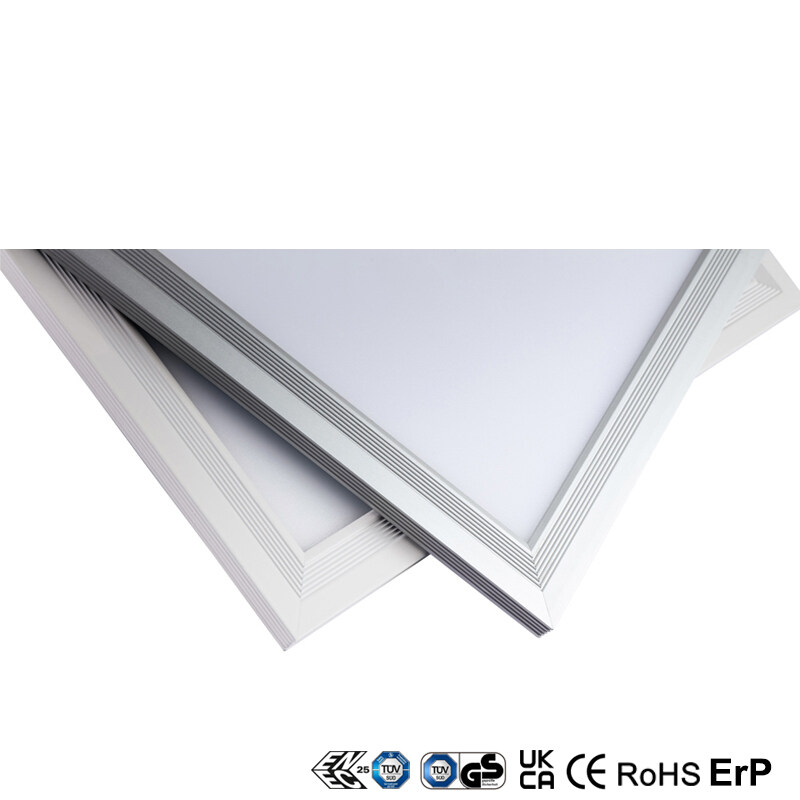

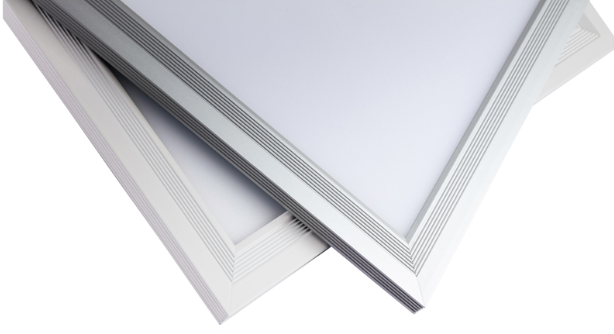

Aluminum frame detail

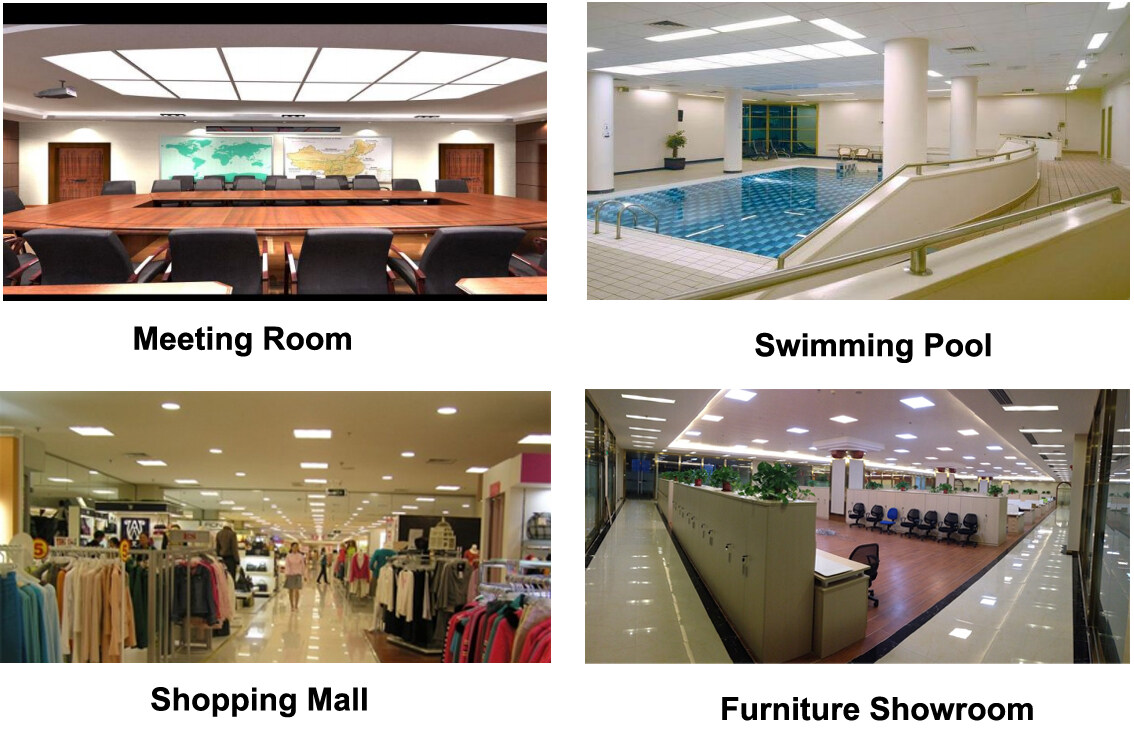

Applications
Commercial areas , Industrial areas , Office , Meeting room , Shop , Retail , Super market , Corridor , etc .
