- Customized design
- LED panel integrated with surface mounted frame
- Advanced technology SMD 2835 LED
- High Light efficiency up to 180lm/w
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details
Customized size 1550x310mm low glare UGR<19 back-lit LED panel light integrated with surface mounted frame, easy installation. And with new design micro-prismatic diffuser , anti-glare LED panels make the environment more gentle and natural , more comfortable lights , less harm for people eyes . We use high quality light source , light efficiency can be up to 180lm/w output. Long lifespan 50000H , 5 years warranty , very good heat dissipation performance , low maintenance , energy saving and reliable . Without light guide plate(LGP) , won’t get yellowing and spots . Driver with high power factor over 0.95 , no flickering . White powder-coating clean finished aluminum frame and solid back cover , not easy to damage . Matching most types of ceiling grids , suitable for recessed , surface mounting or suspending installation with optional accessories . Popular for the European market , approve the ENEC , CE , TUV-GS , UKCA , ROHS , ErP certificate . More comfort lights for the school , education areas , office , and other commercial areas.
Sample is available to test , and fast delivery within 15 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
1550x310x50mm |
| LED Chip : | San'an / Philips / Osram option |
|
Norminal Power : |
20-72W |
|
Luminous Flux (LM) : |
100lm/w-180lm/w |
|
CCT : |
3000K / 4000K / 6500K option |
|
CRI : |
Ra>80, Ra90, Ra95, Ra98 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram option |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<22, UGR<19, UGR16 option |
|
Materials : |
Aluminum frame , PMMA lens |
|
IP Rating : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ErP |
Package
Carton Sizes : 158x30x35.5cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

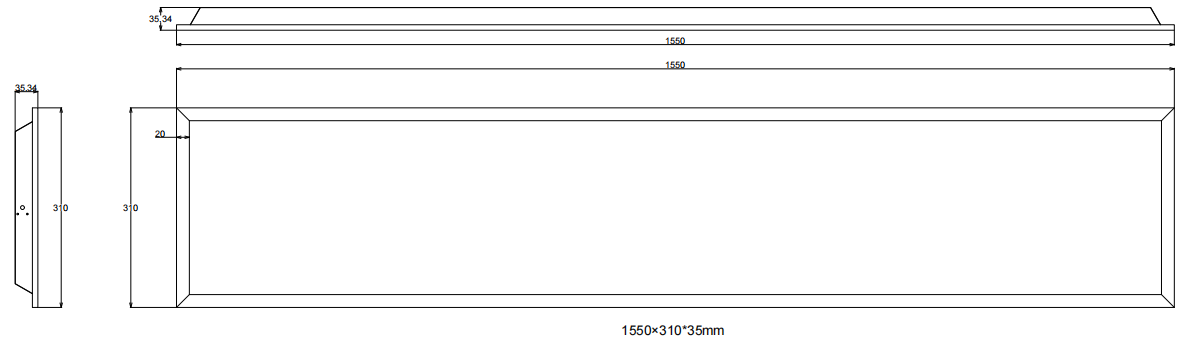

Dimensions
Ultra slim and flat design , with only 35mm overall height
Photometric
PMMA Lens , perfect optical design
Applications
Office , School , Education areas , Meeting room , Shop , Retail , Super market , Corridor , etc .
