- Front side, back side, complete panel reach IP65
- Anti-bacterial

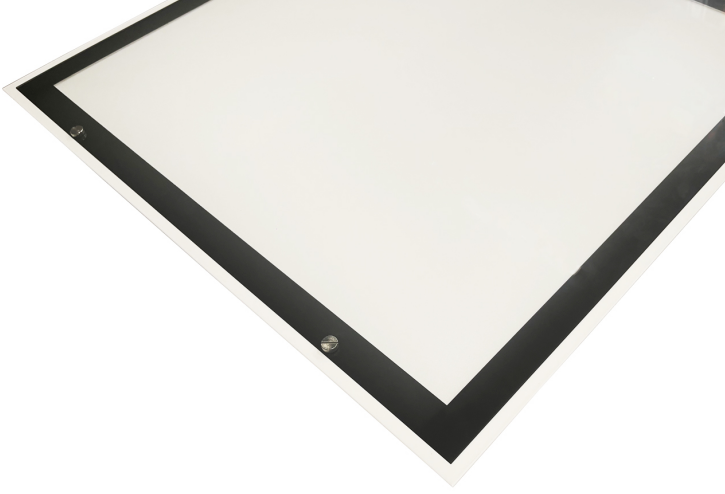

- Detachable tempered glass
- Special used in clean room, hospital
- Quick installation
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details

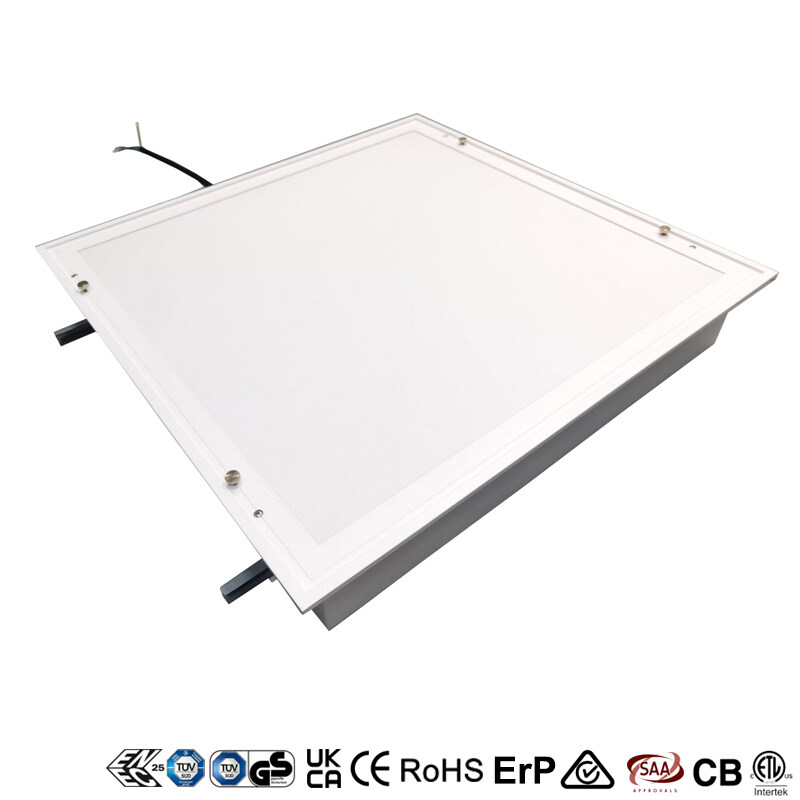

Upgrade design cleanroom hospital IP65 anti-bacterial LED panel, with detachable tempered glass on the diffuser, covering the screw holes, easy for cleaning and disinfecting. Advanced SMD LED technology, light efficiency up to 150lm/w. Built-in driver. Light leakage prevention. Quick installation. Long lifespan over 50000H, 5 years warranty, greatly reducing the maintenance . It is perfect to install in the hospital, cleanroom, high humidity spaces, kitchen, operating room, chemical room, pharmaceutical factory, etc.
Sample is available to test, and fast delivery within 25 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|

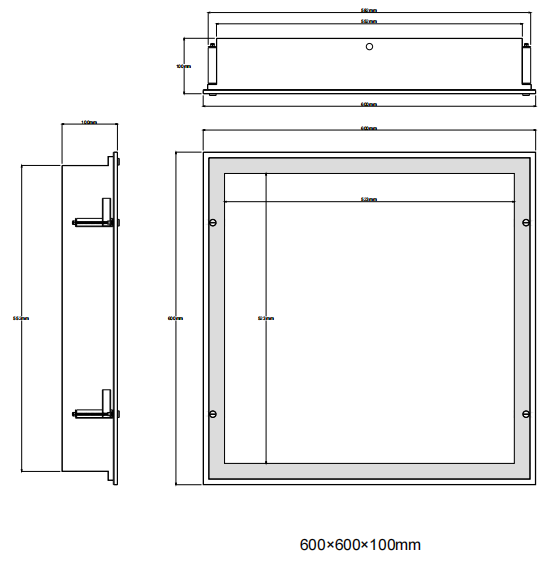

Dimension : |
600x600x100mm |
|
Norminal Power : |
20W-60W option |
| LED Chip : | San'an / Philips / Osram (option) |
|
Luminous Flux (LM) : |
100lm/w-150lm/w (option) |
|
CCT : |
2700K / 3000K / 4000K / 6000K / 6500K (option) |
|
CRI : |
Ra>80/90/95/98 (option) |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram (option) |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<23 / UGR<19 / UGR17 / UGR16 (option) |
|
Materials : |
Aluminum frame |
|
IP Rated : |
IP65 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ERP , ETL , SAA , RCM , CB |
IP65 LED panel , anti-bacteial LED panel light , over 100lm/w IP65 LED panels , LED ceiling panel IP65 , cleanroom LED panels , hospital IP65 LED panel lights .
Package
Net Weight 7.36kg, Carton Size : 65.5x15x66cm , 1units/ctn. ( Contain inner box )

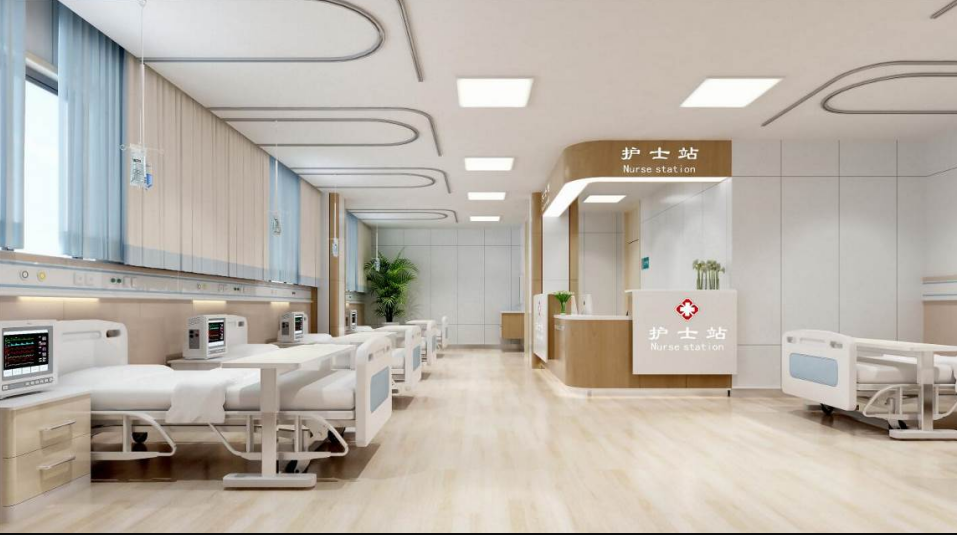

Applications
