Back-lit LED Panel 40W 100lm/w 600x600

Model: S-BL0606-4010023

- Super flat design

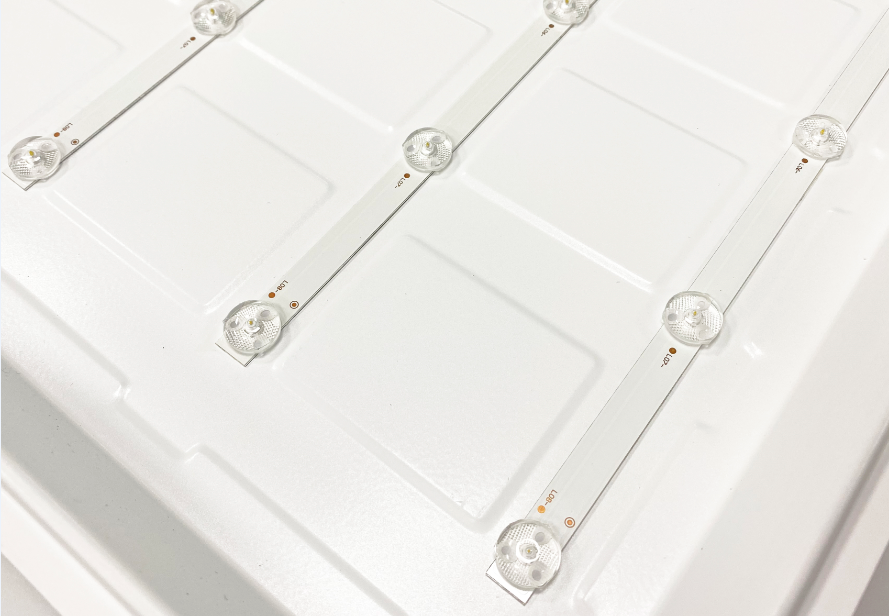

- Advanced technology SMD 2835 LED

- Light efficiency 100lm/w output

- Flicker free

- Long lifetime 50000H

- 5 years warranty

- RG0

Product Details

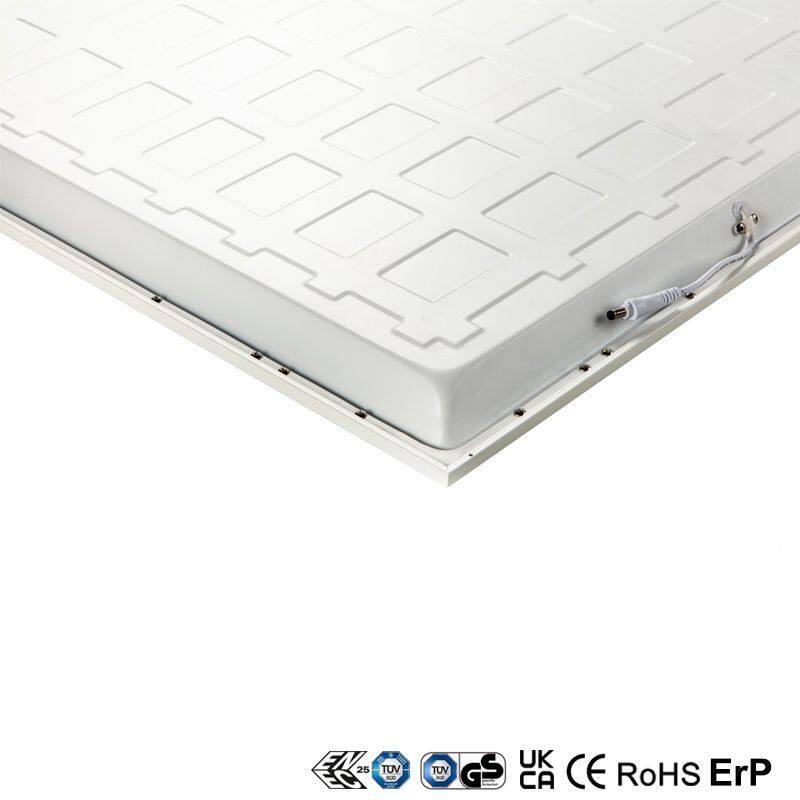

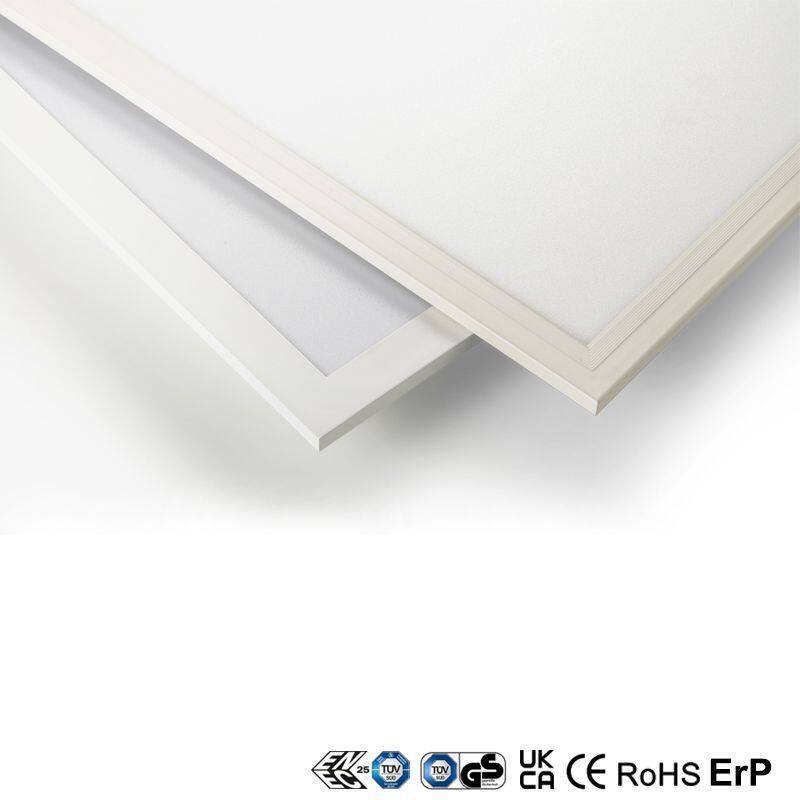

High uniform 600x600 40W back-lit LED panel , illuminate directly . Super flat . long lifespan 50000H L90B10 , 5-year warranty , energy saving and reliable . No LGP and will not get yellowing , good heat dissipation , low maintenance , superior quality and high efficiency . Light efficiency 100lm/w output , high brightness 4000lm , less power for more lumens , super bright LEDs , thanks to the high quality San’an 2835 LED chip . High power factor over 0.95 driver , flicker free . White powder-coating clean finished aluminum frame , solid back cover . Matching most types of ceiling grids , suitable for recessed , surface mounting or suspending installation with optional accessories . Producing the perfectly smooth area of light . Back-lit panel light is lightweight , easy installation . Very popular for the European market , owns the ENEC , CE , TUV-GS , UKCA , ROHS , ErP certificate . Meets the Blue Light Hazard Regulation RG0 . More comfort lights for the office , meeting room , retail , shop , school and other commercial areas .

Sample is available to test , and fast delivery within 15 days for the bulk orders .





Specifications

Input Voltage :

AC200V-240V , 50/60Hz

Dimension :

595x595x30mm

LED Chip :  San'an / Philips / Osram option

Norminal Power :

40W

Luminous Flux (LM) :

100lm/w

CCT :

2700K/3000K/4000K/5000K/6500K  option

CRI :

Ra>80

Driver :

Lifud / Philips / Boke / AGT / Osram  option

Power Factor :

PF>0.95

UGR(Unified Glare Rating) :

UGR<23

Materials :

Aluminum frame , PMMA lens

IP Rating :

IP40

Lifetime :

50000H

Warranty :

5 years

Working Ambient Temp. :

-20~+40‚ÑÉ

Working Ambient Humidity :

10%~90%

Mounting :

Recessed , Suspending , Surface mounted , Spring clips , T-bar

Dimmable :

On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming

Certificate :

ENEC , TUV-GS , UKCA , CE , RoHS , ErP

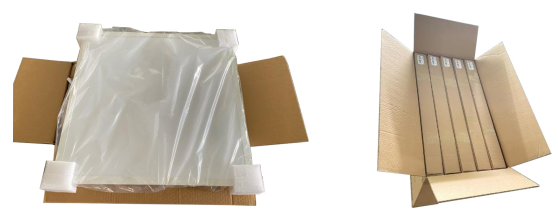

Package

Option 1 : Carton Sizes : 66.5x66.5x34cm , 5units/ctn. (contain inner box)

 3000k Led Panel

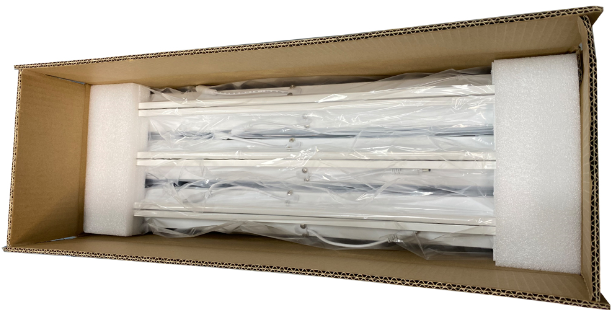

Option 2 : Carton Sizes : 66x66x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

back-lit LED panel







Dimensions

back-lit LED panel light

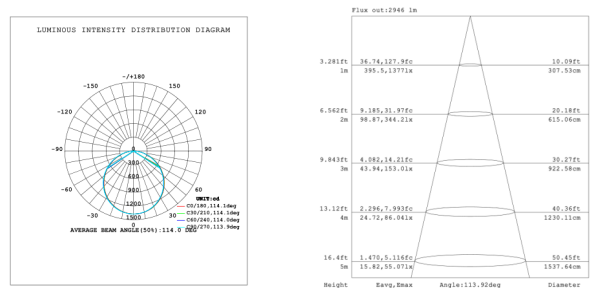

Photometric

back light led panel







PMMA Lens , perfect optical design

LED panel luminaires

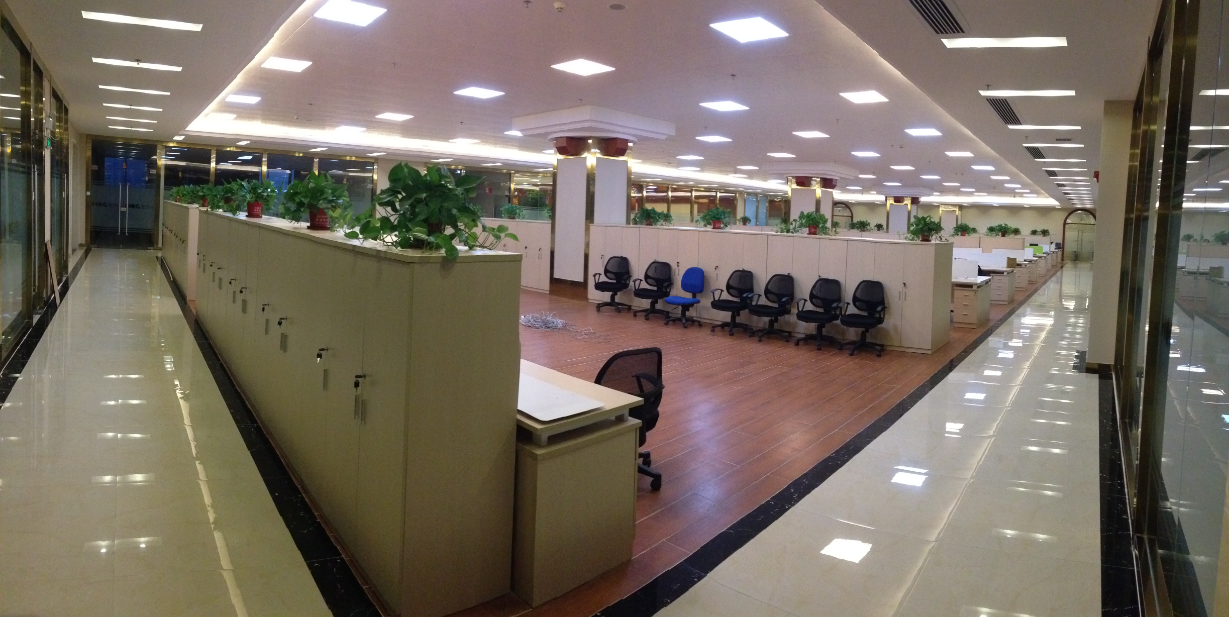

Applications

Office , Meeting room , Shop , Retail , Supermarket , Corridor , Bank , Reception areas , etc .

Flicker free LED panel light
