- Super flat design
- Advanced technology SMD 2835 LED
- High Light efficiency 120lm/w output
- Low glare UGR<19
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details

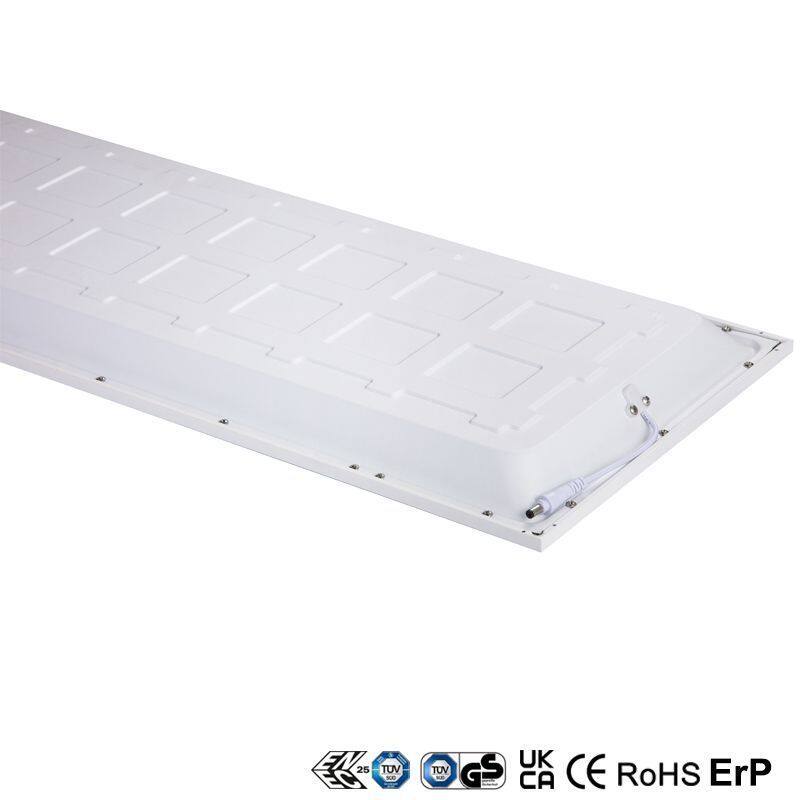

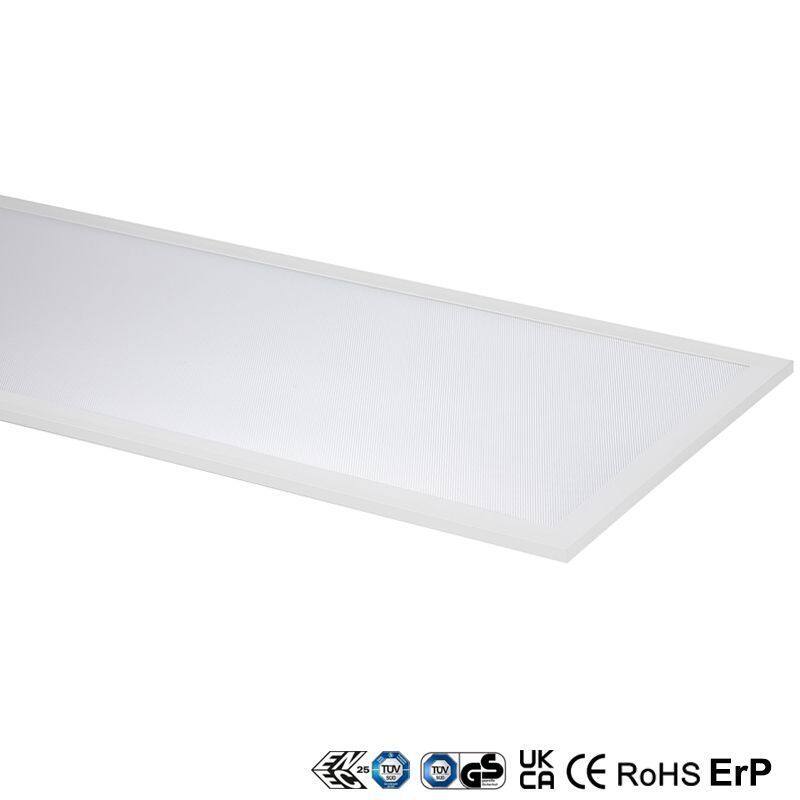

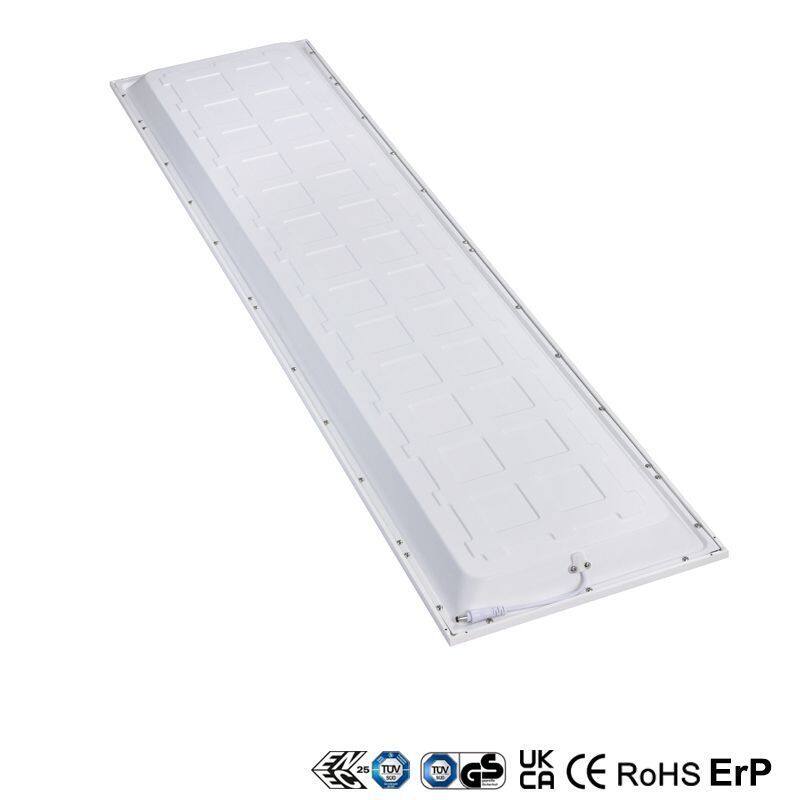

Rectangle 1200x300mm low glare UGR<19 back-lit LED panel light with new design micro-prismatic diffuser , anti-glare LED panels make the environment more gentle and natural , more comfortable lights , less harm for people eyes . We use high quality light source , light efficiency can be 120lm/w output , high brightness 4320lm. Long lifespan 50000H , 5 years warranty , very good heat dissipation performance , low maintenance , energy saving and reliable . Without light guide plate(LGP) , won’t get yellowing and spots . Driver with high power factor over 0.95 , no flickering . White powder-coating clean finished aluminum frame and solid back cover , not easy to damage . Matching most types of ceiling grids , suitable for recessed , surface mounting or suspending installation with optional accessories . Popular for the European market , owns the ENEC , CE , TUV-GS , UKCA , ROHS , ErP certificate . More comfort lights for the school , education areas , office , and other commercial areas.
Sample is available to test , and fast delivery within 15 days for the bulk orders .
Specifications
|
Input Voltage : |
AC200V-240V , 50/60Hz |
|
Dimension : |
1195x295x30mm |
| LED Chip : | San'an / Philips / Osram option |
|
Norminal Power : |
36W |
|
Luminous Flux (LM) : |
120lm/w |
|
CCT : |
4000K / 6500K option |
|
CRI : |
Ra>80 |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram option |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<19 |
|
Materials : |
Aluminum frame , PMMA lens |
|
IP Rating : |
IP40 |
|
Lifetime : |
50000H |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40‚ÑÉ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|
Certificate : |
ENEC , TUV-GS , UKCA , CE , RoHS , ErP |
Package
Option 1 : Carton Sizes : 126.5x37x34cm , 5units/ctn. (contain inner box)
Option 2 : Carton Sizes : 126x36x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

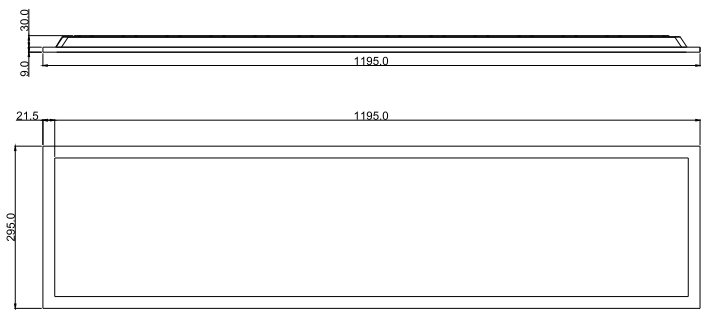

Dimensions
Ultra slim and flat design , with only 30mm overall height
Photometric

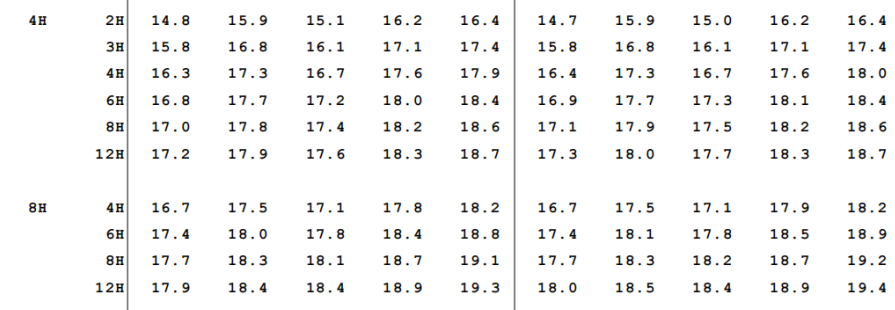

UGR Value

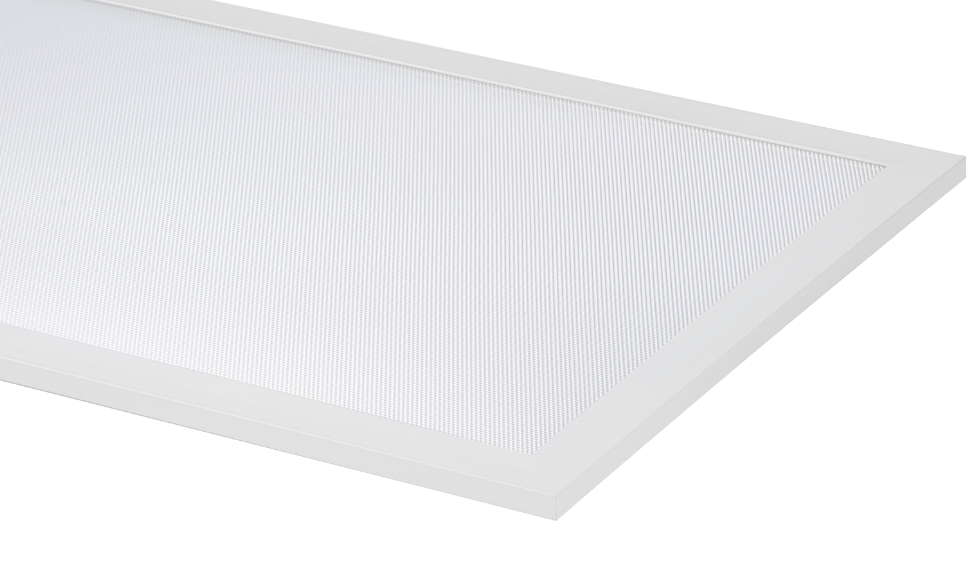

Micro-prismatic diffuser detail
PMMA Lens , perfect optical design
Applications
Office , School , Education areas , Meeting room , Shop , Retail , Super market , Corridor , etc .
