- High uniformity of light
- Advanced technology SMD 2835 LED
- High light efficiency up to 180lm/w output
- Low glare UGR<19
- Flicker free
- Long lifetime 50000H
- 5 years warranty
- RG0
Product Details

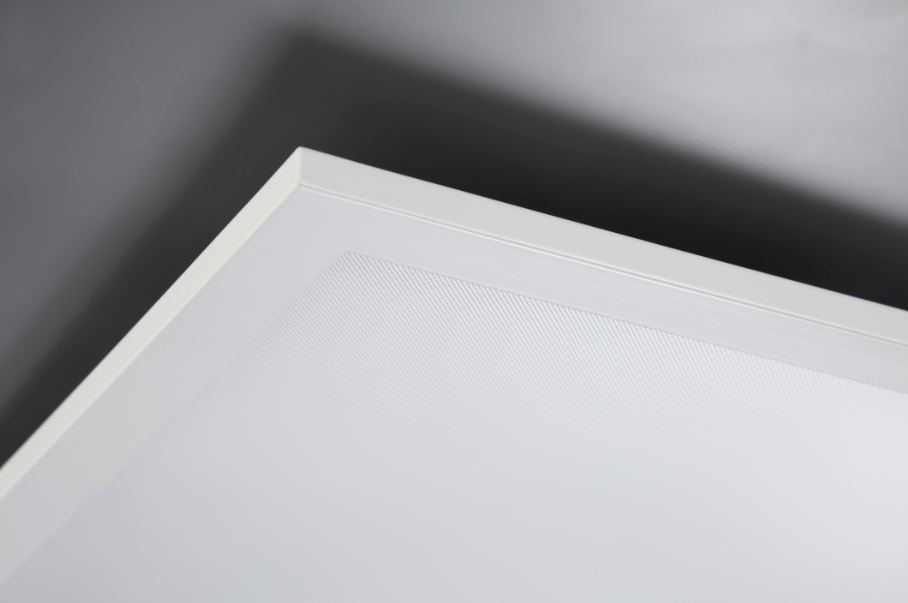

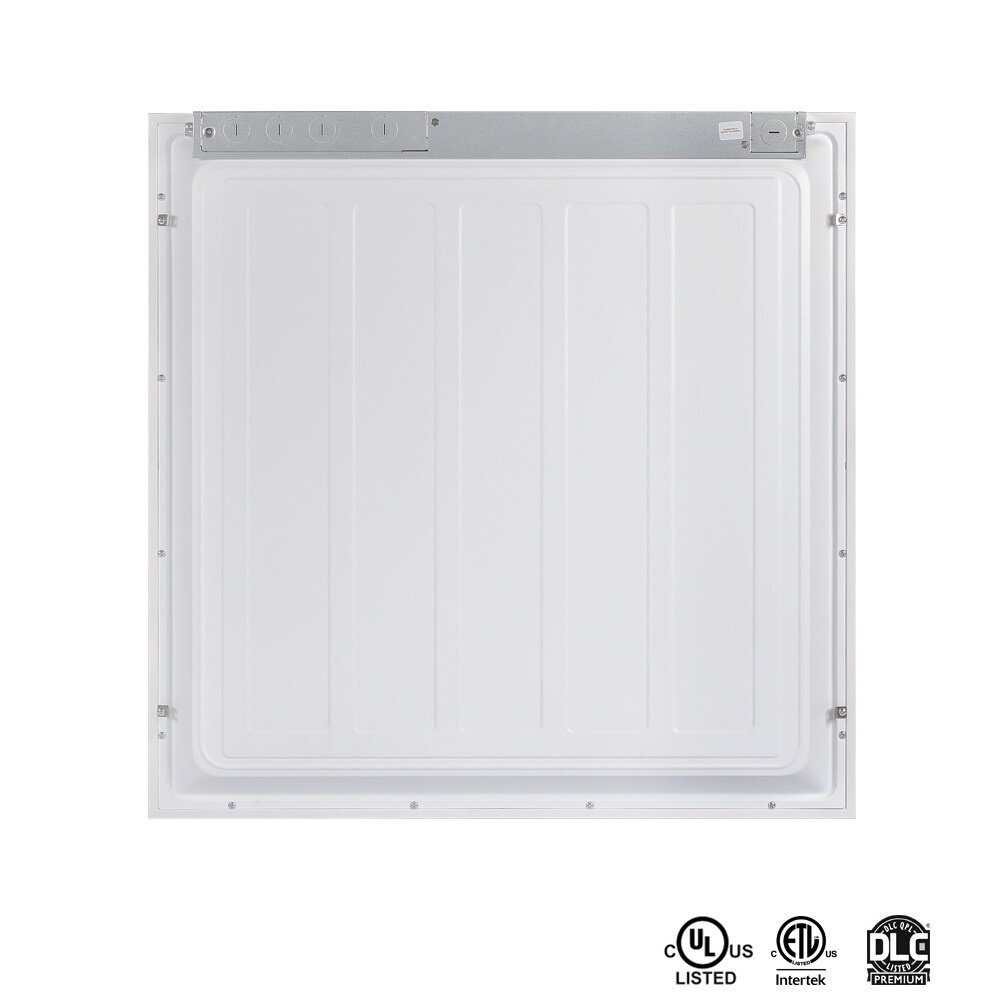

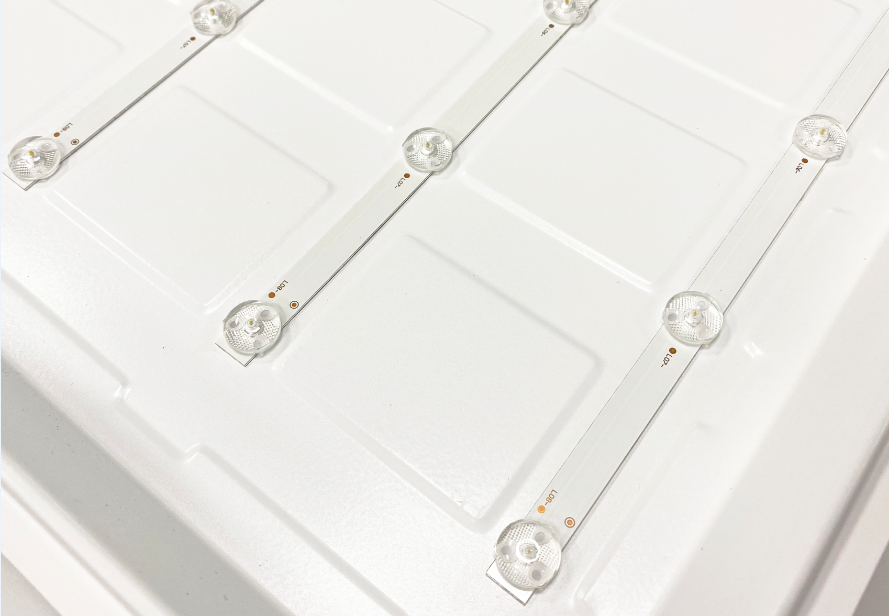

2x2 low glare UGR<19 back-lit LED panel light, makes the environment more gentle and natural, more comfortable lights, less harm for the eyes. No yellowing. Light efficiency 100lm/w to 180lm/w output, high brightness, less power for more lumens, thanks to the high quality San’an 2835 LED chip. High power factor over 0.95 driver, flicker free. Long lifespan 50000H, 5 years warranty, energy saving and reliable. With white powder-coating aluminum frame, matching most types ceiling grids. Very good heat dissipation performance. Low maintenance. Very popular for the north American market, owns the UL, ETL, DLC certificate . It is perfect for variety applications, for example schools, offices, education areas, etc.
Sample is available to test, and fast delivery within 15 days for the bulk orders.
Specifications
|
Input Voltage : |
AC100V-240V , 50/60Hz |
|
Dimension : |
603x603x34mm |
| LED Chip : | San'an / Philips / Osram option |
|
Norminal Power : |
20-60W option |
|
Luminous Flux (LM) : |
100lm/w - 180lm/w |
|
CCT : |
2700K/3000K/4000K/5000K/5700K/6500K option |
|
CRI : |
Ra80, Ra90, Ra98 option |
|
Driver : |
Lifud / Philips / Boke / AGT / Osram option |
|
Power Factor : |
PF>0.95 |
|
UGR(Unified Glare Rating) : |
UGR<19, UGR<23, UGR16 option |
|
Materials : |
Aluminum frame |
|
IP Rating : |
IP40/IP44/IP54/IP65 option |
|
Lifetime : |
50000H (L90B10) |
|
Warranty : |
5 years |
|
Working Ambient Temp. : |
-20~+40 ℃ |
|
Working Ambient Humidity : |
10%~90% |
|
Mounting : |
Recessed , Suspending , Surface mounted , Spring clips , T-bar |
|
Dimmable : |
On/Off / Push / Triac / 0-10V / 1-10V / DALI dimming |
|

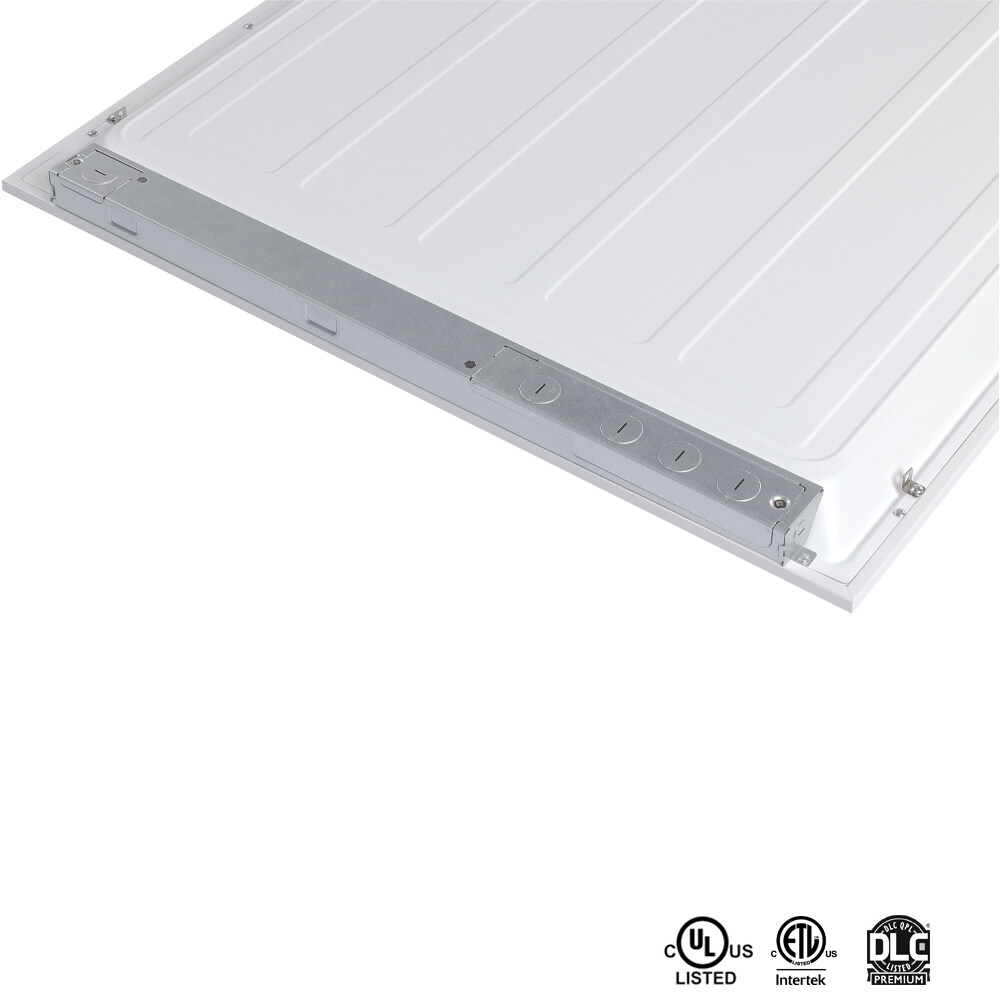

Certificate : |
UL, ETL, DLC |

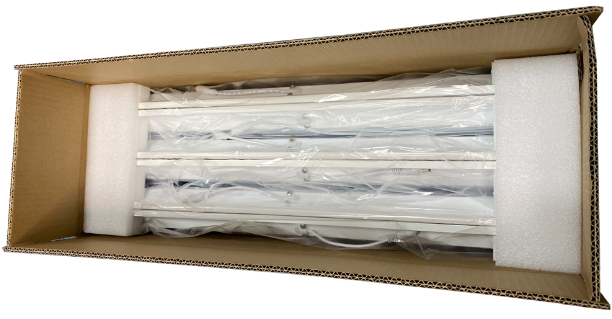

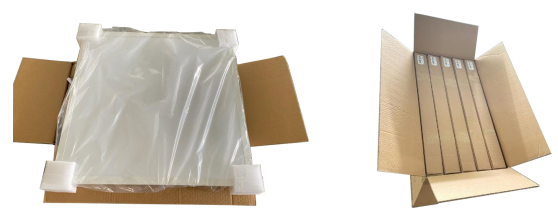

Package
Option 1 : Carton Sizes : 69x69x34cm , 5units/ctn. (contain inner box)
Option 2 : Carton Sizes : 65x65x23cm , 6units/ctn. ( Industry package , not contain the inner box , save the CBM )

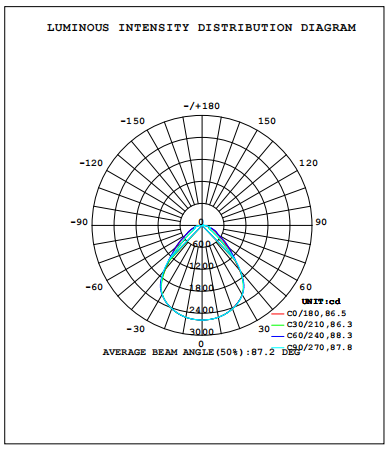

Photometric

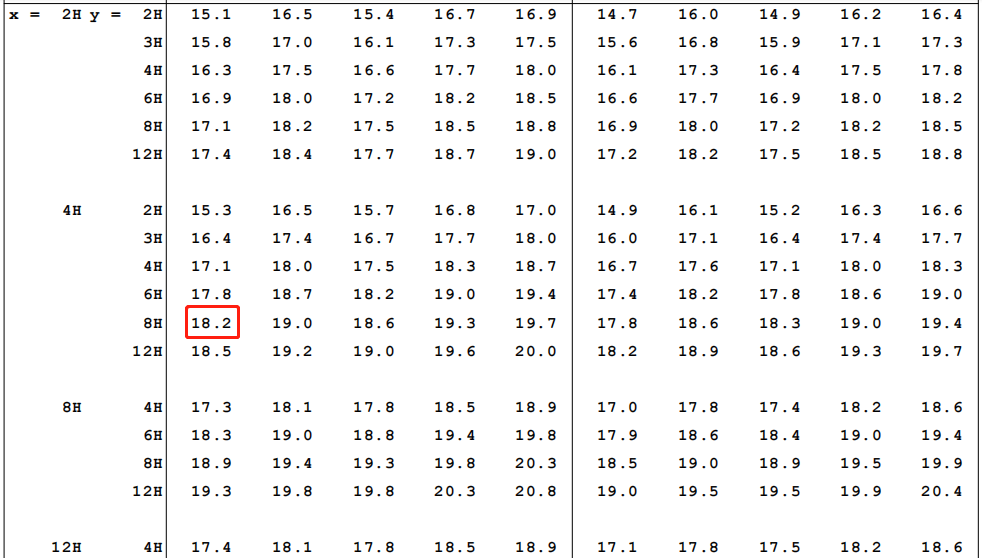

Micro-prismatic diffuser , UGR<19
PMMA Lens , perfect optical design

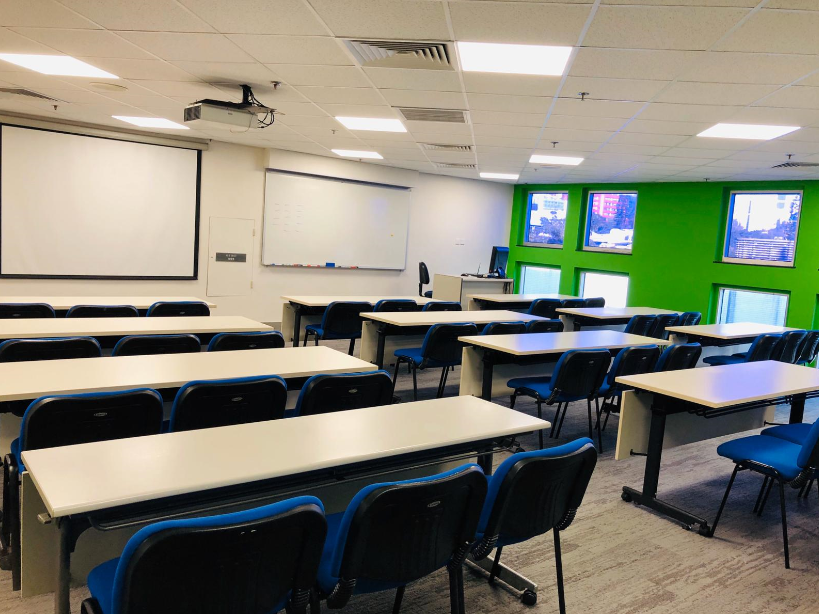

Applications
Office , School , Education areas , Meeting room , Shop , Retail , Super market , Corridor , etc .
